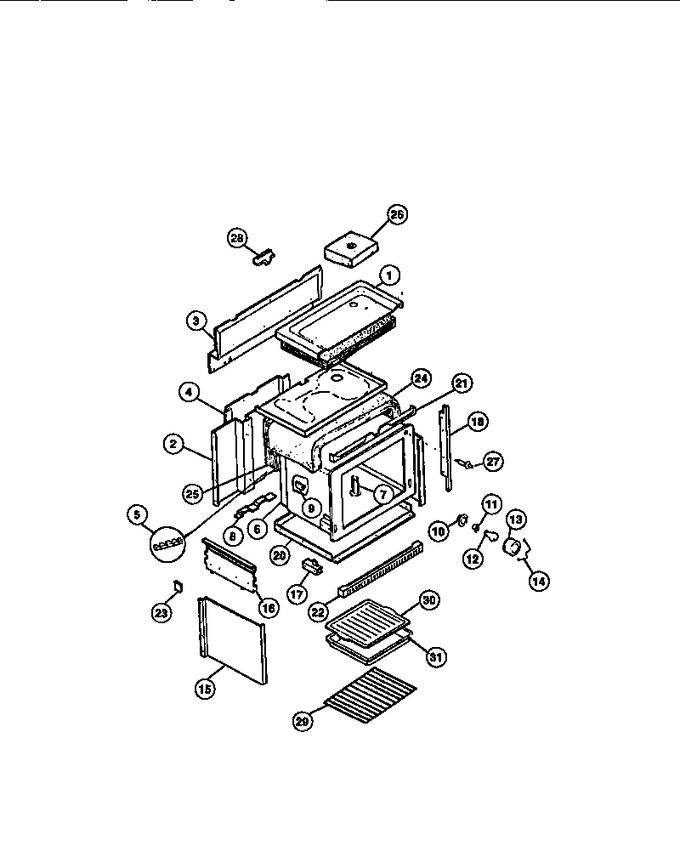

04 - Cook Top, Surface Units, Drip Pans


05 - Oven Liner, Side Panels


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303051553		Panel, Subtop		Appelez-nous	-
2	3204649		Back, Range		Appelez-nous	-
3	5308008689		Back Range, Upper		Appelez-nous	-
4	3204650		Cover, Wire		Appelez-nous	-
5	5303161116		Terminal Block		Appelez-nous	-
7	08003333		Tube, Vent		Appelez-nous	-
8	3203574		Plate, Mounting		Appelez-nous	-
9	3051552		Bracket, Thermostat Bulb		Appelez-nous	-
10	3051511		Housing-oven Light				$ 60.22
11	316116400		Receptacle-light   (Replaces: 5308011085)			Immediately	$ 56.10
12	40A15		Light Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
13	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
14	3051515		Retainer, Lens		Appelez-nous	-
15	08012226		Retainer, Insulation (2)		Appelez-nous	-
16	5308015935		Panel, Side (2)		Appelez-nous	-
17	3051527		Bracket, Support, Rh (2)		Appelez-nous	-
18	08003334		Trim, Oven Front (2)		Appelez-nous	-
20	3204634		Retainer, Insulation, Bottom		Appelez-nous	-
21	5308008693		Bracket, Cooktop		Appelez-nous	-
22	5308012249		Grill, Bottom		Appelez-nous	-
23	3051827		Plate, Filler (2)		Appelez-nous	-
24	3051521		Insulation Wrap		Appelez-nous	-
25	5303051630		Insulation-back		Appelez-nous	-
26	3051523		Insulation, Vent Tube		Appelez-nous	-
27	5301314211		Switch-oven Light				$ 95.29
28	3051800		Bracket, Hinge Support		Appelez-nous	-
29	5303131973		Rack, Oven		Appelez-nous	-
30	5303131356		Grill, Broiler		Appelez-nous	-
31	3200723		Pan, Broiler		Appelez-nous	-
*83040	3203578		Plate, Warning		Appelez-nous	-
*83041	3203396		Rivet, Pop		Appelez-nous	-
17A	3051528		Bracket, Support, Lh (2)		Appelez-nous	-
