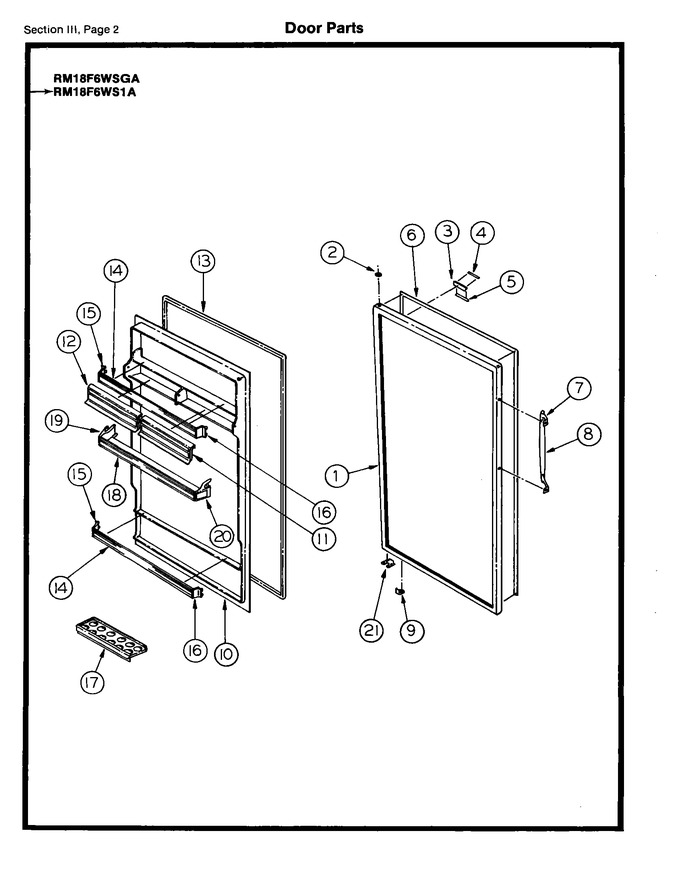

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G184924		Panel - Exterior Door		Appelez-nous	-
2	G183138		Bearing, Hinge (4)		Appelez-nous	-
3	G175117-02		Nameplate		Appelez-nous	-
3	G141624-04		Tape - Nameplate		Appelez-nous	-
4	G175118-03		Label - Upper		Appelez-nous	-
5	G175393-01		Label, Lower		Appelez-nous	-
6	G167404-11		Trim-door		Appelez-nous	-
7	G172482		Handle		Appelez-nous	-
7	G185566		Screw		Appelez-nous	-
8	G164180		Grip - Handle		Appelez-nous	-
9	G165376		Bumper - Light Switch		Appelez-nous	-
10	G169860-02		Panel - Interior Door		Appelez-nous	-
10	G162585		Screw		Appelez-nous	-
11	G162855-58		Door - Butter		Appelez-nous	-
12	G162855-58		Door - Cheese		Appelez-nous	-
13	G180547-10		Gasket - Door		Appelez-nous	-
14	G162887-19		Rack-upper And Lower (3)		Appelez-nous	-
15	G171023-02		Support - Rack L.h. (3)		Appelez-nous	-
16	G171024-02		Support - Rack R.h. (3)		Appelez-nous	-
17	G165721-04		Container - Egg (2)		Appelez-nous	-
18	G164109-22		Rack - Center (2)		Appelez-nous	-
19	G163780-03		Cap - Rack L.h. (2)		Appelez-nous	-
20	G163781-03		Cap-rack Rh (2)		Appelez-nous	-
20	G101890		Rivet		Appelez-nous	-
20	G167115		Screw - Caps (4)		Appelez-nous	-
21	G155072		Door Stop		Appelez-nous	-
21	G162585		Screw		Appelez-nous	-
NI	G169332-01		Button Plug, White		Appelez-nous	-
NI	G169487-01		Kit - Door Conversion		Appelez-nous	-
NI	G162977-01		Button Plug-white		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
