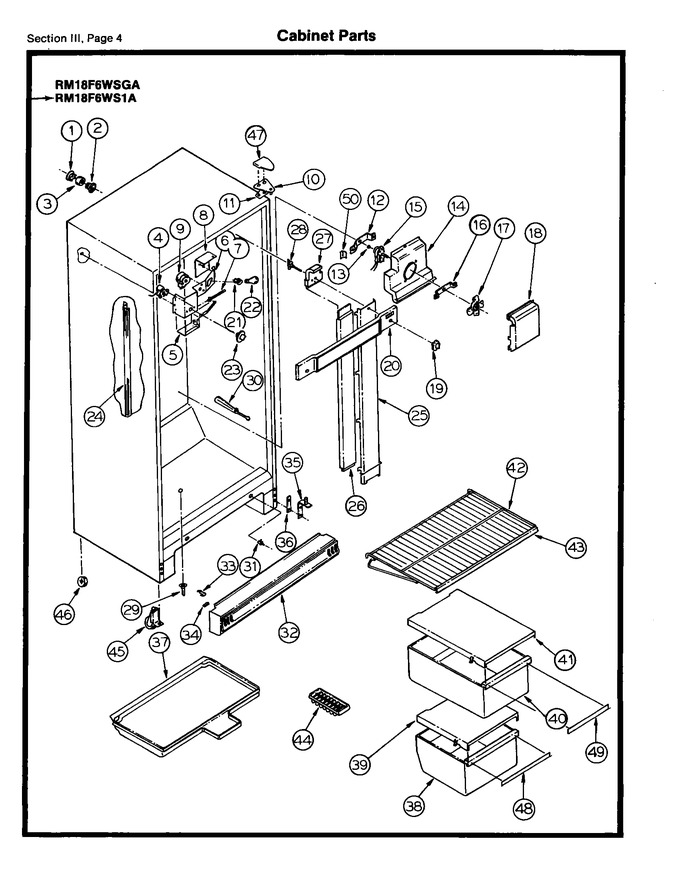

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G174734		Ferrule-outer (2)		Appelez-nous	-
2	G174733		Ferrule - Inner (2)		Appelez-nous	-
3	G85642		Tube (4)		Appelez-nous	-
4	G107080		Screw		Appelez-nous	-
4	G162667-07		Thermos-contrl		Appelez-nous	-
5	G169749		Cover - Control Mtg. Bracket		Appelez-nous	-
6	G169812		Bracket - Control Mtg.		Appelez-nous	-
7	G170287		Housing - Control Cap. Tube		Appelez-nous	-
8	G170465		Deflector Light		Appelez-nous	-
9	G105289		Screw		Appelez-nous	-
9	G158291		Timer		Appelez-nous	-
9	G141851		Screw - 8 - 32 (2)		Appelez-nous	-
10	G183714		Hinge, Upper Door		Appelez-nous	-
11	G183861		Shim, Upper Hinge		Appelez-nous	-
12	G162585		Screw		Appelez-nous	-
12	G162048		Bracket - Rear		Appelez-nous	-
13	G157666		Bushing-motor Mtg (2)		Appelez-nous	-
14	G169597		Housing, Motor		Appelez-nous	-
15	G158289		Motor-fan		Appelez-nous	-
16	G162049		Bracket - Front		Appelez-nous	-
17	G174705		Fan		Appelez-nous	-
18	G169608		Cover - Fan		Appelez-nous	-
18	G166567		Screw (9)		Appelez-nous	-
19	G169950-01		Knob-damper Control		Appelez-nous	-
20	G169949-09		Shield-light		Appelez-nous	-
20	G172637-04		Label - Ref. Temp. Control		Appelez-nous	-
20	G172635-04		Label - Frz. Temp. Control		Appelez-nous	-
21	G168510		Socket-light		Appelez-nous	-
22	G165723		Bulb, Light		Appelez-nous	-
23	G162881-10		Knob - Cold Control		Appelez-nous	-
24	G158222		Nut - Anchor (9)		Appelez-nous	-
24	G170694		Channel, Shelf Mtg (2)		Appelez-nous	-
24	G163980		Screw - Channel (11)		Appelez-nous	-
25	G169836		Duct Air		Appelez-nous	-
26	G169841		Lower Insulation - Duct		Appelez-nous	-
27	G169861		Insul Air Duct		Appelez-nous	-
28	G171508		Nut - Duct		Appelez-nous	-
28	G169850		Damper - Air Duct		Appelez-nous	-
28	G183147		Screw - 8 X 1/2 (2)		Appelez-nous	-
29	G164843		Drain Tube		Appelez-nous	-
30	G163980		Screw, 8 X 5/8		Appelez-nous	-
30	G170001-01		Damper Meat Keeper		Appelez-nous	-
30	G167125		Screw - 8 X 3/4		Appelez-nous	-
31	G149762		Light Switch		Appelez-nous	-
32	G161904-01		Kickplate		Appelez-nous	-
NI	G167103		Screw, Bracket (2)		Appelez-nous	-
NI	G174747-01		Button-plug-white		Appelez-nous	-
NI	G103903		Washer, Nylon				$ 3.10
