SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - Cabinet

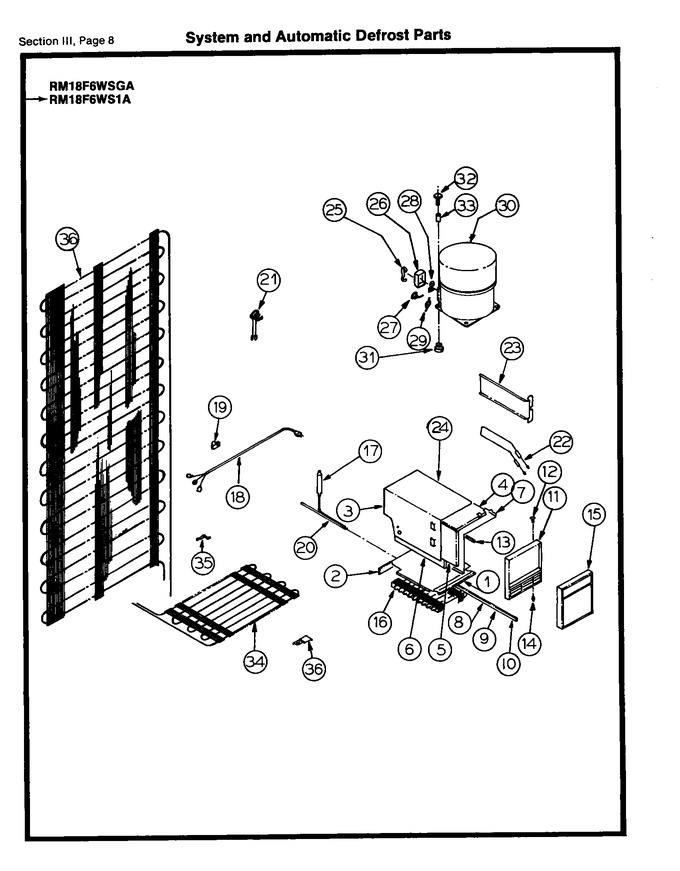

09 - System And Automatic Defrost


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G169589		Bottom Freezer		Appelez-nous	-
2	G169969		Insulation - Bottom		Appelez-nous	-
2	G170779		Block - Evap. Insul.		Appelez-nous	-
3	G171083		Side Housing		Appelez-nous	-
4	G169831		Insulation - Upper		Appelez-nous	-
5	G169832		Insul. - Middle		Appelez-nous	-
6	G169833		Insulation - Lower		Appelez-nous	-
7	G158222		Nut - Liner (2)		Appelez-nous	-
7	G174226		Nut - Liner (2)		Appelez-nous	-
7	G169800		Housing Inner		Appelez-nous	-
8	G170533-01		Gasket - Freezer		Appelez-nous	-
9	G170533-02		Gasket Freezer		Appelez-nous	-
10	G170533-04		Gasket - Freezer (2)		Appelez-nous	-
11	G169891-01		Panel - Freezer Front		Appelez-nous	-
11	G169964		Insulation - Grille Side Front		Appelez-nous	-
11	G170533-07		Gasket - Freezer		Appelez-nous	-
11	G171694		Insulation - Panel		Appelez-nous	-
12	G169863		Pin Upper Hinge		Appelez-nous	-
13	G171003		Magnet Freezer Housing		Appelez-nous	-
14	G170002		Pin - Lower Hinge		Appelez-nous	-
15	G186147		Label - Door		Appelez-nous	-
15	G169874-09		Evaporator Door Outer		Appelez-nous	-
15	G169862		Evaporator Door - Inner		Appelez-nous	-
15	G169965		Insulation		Appelez-nous	-
15	G169975		Gasket - Door		Appelez-nous	-
16	G169955		Evaporator		Appelez-nous	-
17	G177375		Drier		Appelez-nous	-
18	G162549-01		Cord, Service		Appelez-nous	-
19	G162585		Screw		Appelez-nous	-
19	G27669		Clamp - Cord (4)		Appelez-nous	-
20	G174120		Heat Exchanger (non-illustrated)		Appelez-nous	-
21	G166153		Thermo, Defrost		Appelez-nous	-
22	G187141		Heater - Defrost (non-illustrated)		Appelez-nous	-
22	G165546		Strap - Heater		Appelez-nous	-
23	G187142		Shield - Defrost Heater		Appelez-nous	-
24	G171082		Housing - Outer - Top		Appelez-nous	-
25	G166057		Bale, Strap		Appelez-nous	-
26	G177438		Cover - Terminal		Appelez-nous	-
27	G166094		Overload		Appelez-nous	-
28	G150618-11		Relay		Appelez-nous	-
29	G166053		Clip		Appelez-nous	-
30	G172444		Compressor Package (non-illustrated)		Appelez-nous	-
31	G177617		Grom Compr. Mtg. (4 Req)		Appelez-nous	-
32	G183344		Screw		Appelez-nous	-
33	G154588		Sleeve		Appelez-nous	-
34	G175411		Defrost Plate		Appelez-nous	-
35	G160578		Screw		Appelez-nous	-
35	G164637		Bkt-cond (4)		Appelez-nous	-
36	G162739		Condenser		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
