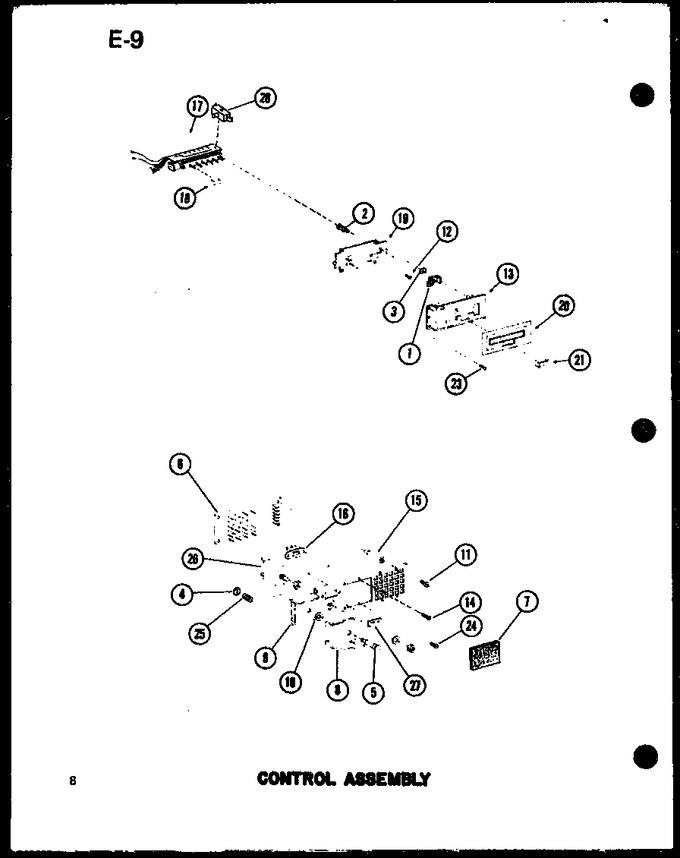

01 - Control Assy


02 - Page 1


03 - Page 3


04 - Page 4


05 - Page 5


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5760402		Bracket Escutch		Appelez-nous	-
2	M0234402		Screw		Appelez-nous	-
3	M0287713		Speed Nut		Appelez-nous	-
4	B8311801		Clip-pin		Appelez-nous	-
5	B8312001		Pin-spring Retainer		Appelez-nous	-
6	D7443801		Timer, Electronic		Appelez-nous	-
7	B8315701		Screen, Air Inlet		Appelez-nous	-
8	B8317301		Retainer-grille		Appelez-nous	-
9	D7457801		Pnl-air Inlet		Appelez-nous	-
10	M0118702		Clip-guide		Appelez-nous	-
11	M0213815		Screw		Appelez-nous	-
12	M0202513		Screw A		Appelez-nous	-
13	C8868701		Escutcheon, Timer		Appelez-nous	-
14	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
15	M0580503		Support-pc Board		Appelez-nous	-
16	B8312101		Switch-slide		Appelez-nous	-
17	R0163042		Switch Assy Kit		Appelez-nous	-
18	B5674203		Button Timer A-k		Appelez-nous	-
19	B8313501		Plate-switch		Appelez-nous	-
20	B5722501		Thin Plate-el Time		Appelez-nous	-
21	B5723501		Sight-indicator		Appelez-nous	-
23	M0253218		Screw		Appelez-nous	-
24	M0202516		Screw A		Appelez-nous	-
25	B8315601		Spring-grille Ret		Appelez-nous	-
26	M0341302		Circuit Brkr		Appelez-nous	-
27	A1008601		Label-on Off		Appelez-nous	-
28	B8327101		Switch		Appelez-nous	-
