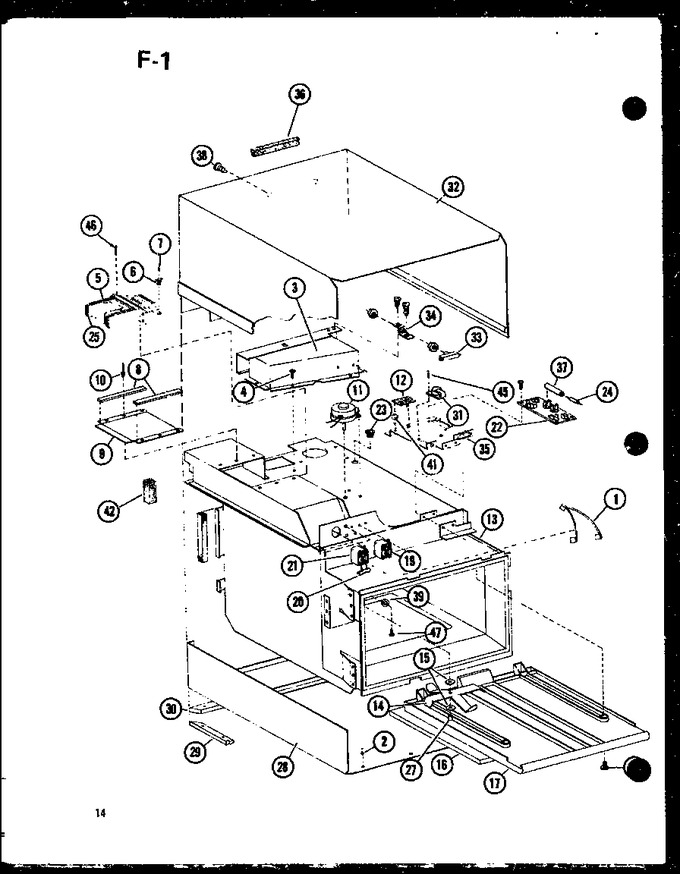

01 - Control Assy
02 - Page 1
03 - Page 3
04 - Page 4
05 - Page 5
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C3655860 | Jumper Wire |
|
- | |||||
| 2 | A4539602 | Pop Rivet |
|
- | |||||
| 3 | D7262902 | Air Duct Wld |
|
- | |||||
| 4 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 5 | C8720509 | Assy, Isolator, With Gaskets A |
|
- | |||||
| 6 | B5684102 | Thermal Protector |
|
- | |||||
| 6 | B5684108 | Thermal Protector |
|
- | |||||
| 7 | M0234114 | Screw |
|
- | |||||
| 8 | A4591129 | Gasket K |
|
- | |||||
| 9 | B5714101 | Cover-isolator |
|
- | |||||
| 10 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 11 | B5602809 | Motor |
|
- | |||||
| 12 | C8770601 | Buzzer Control |
|
- | |||||
| 13 | D7265708 | Weldment, Oven |
|
- | |||||
| 14 | C8708601 | Stirrer Blade (antenna) |
|
- | |||||
| 15 | A3109101 | Washer |
|
- | |||||
| 16 | B5795001 | Tray-oven |
|
- | |||||
| 17 | D7396201 | Grease Shield Kit |
|
- | |||||
| 18 | A1002301 | Screw |
|
- | |||||
| 19 | C3669101 | Gasket |
|
- | |||||
| 20 | M0305007 | Resistor, Relay A |
|
- | |||||
| 21 | R0159006 | Relay Kit |
|
- | |||||
| 22 | C8844701 | Terminal Board |
|
- | |||||
| 23 | A3293503 | Snap Bushing |
|
- | |||||
| 24 | M0308109 | Fuse Resistor K (Replaces: M0308107) |
|
- | |||||
| 25 | A3225401 | Gasket K |
|
- | |||||
| 25 | A3225402 | Gasket K |
|
- | |||||
| 27 | M0114002 | Clip |
|
- | |||||
| 28 | D7262401 | 0c Bottom Wld |
|
- | |||||
| 29 | C8732601 | Gasket |
|
- | |||||
| 30 | C8732602 | Gasket |
|
- | |||||
| 31 | B5787001 | Buzzer |
|
- | |||||
| 32 | C8757503 | Top Assy |
|
- | |||||
| 33 | C8715202 | Switch Oc Intlk K |
|
- | |||||
| 34 | B5743701 | Bracket-switch |
|
- | |||||
| 35 | C8756502 | Plate-mult Mtg |
|
- | |||||
| 36 | A3030308 | Gasket |
|
- | |||||
| 37 | M0308607 | Resistor K |
|
- | |||||
| 38 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 39 | M0273612 | Washer |
|
- | |||||
| 41 | B5675501 | Supt Ckt Bd A |
|
- | |||||
| 42 | A3030308 | Gasket |
|
- | |||||
| 45 | M0218115 | Screw |
|
- | |||||
| 46 | M0234114 | Screw |
|
- | |||||
| 47 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| NI | M0275501 | Sealer |
|
- | |||||
| NI | M0275560 | Rtv (blk) |
|
- |
