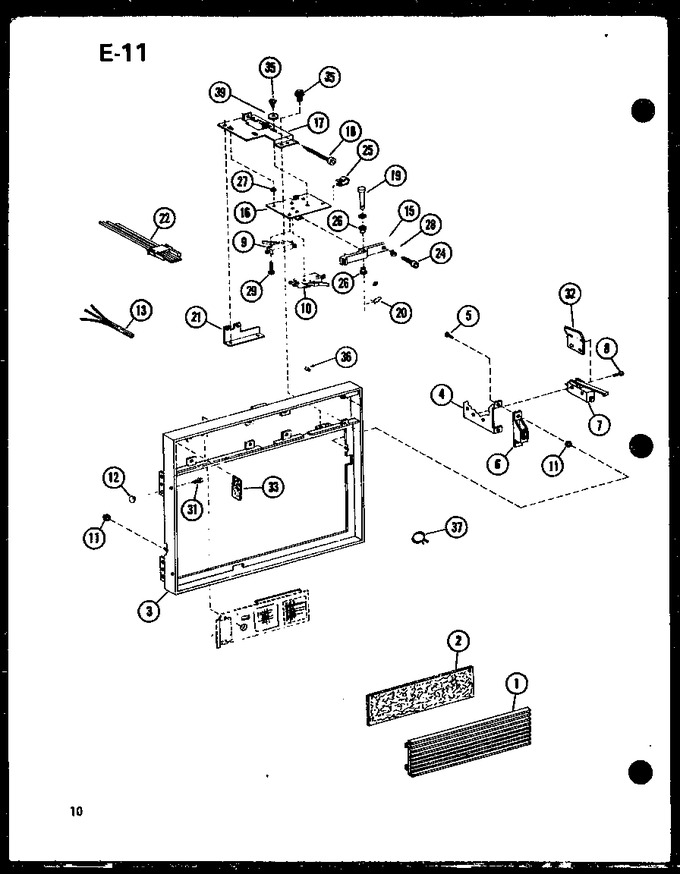

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8853301		Grille-air Inlet		Appelez-nous	-
2	A3094904		Filter		Appelez-nous	-
3	D7293502		Bezel-outer Case		Appelez-nous	-
4	B5675403		Bracket-latch		Appelez-nous	-
5	M0216517		Screw		Appelez-nous	-
6	C3680202		Strike-latch		Appelez-nous	-
7	A3163414		Switch-preform		Appelez-nous	-
8	M0227520		Screw		Appelez-nous	-
9	C3670014		Switch-interlock (limit)		Appelez-nous	-
10	C3670014		Switch-interlock (limit)		Appelez-nous	-
11	M0282901		Nut, Self Thread		Appelez-nous	-
12	M0285902		T Nut		Appelez-nous	-
13	A1020801		Wire Harness Assy		Appelez-nous	-
14	M0270524		Washer		Appelez-nous	-
15	B5755701		Actuating Arm		Appelez-nous	-
16	B5747502		Mtg Plate-interlock		Appelez-nous	-
17	B5747201		Adj Brkt-switch		Appelez-nous	-
18	M0231249		Screw		Appelez-nous	-
19	A3260201		Pin-retainer		Appelez-nous	-
20	A3171501		Clip,hairpin		Appelez-nous	-
21	B5756101		Brkt Supt-interlock		Appelez-nous	-
22	C8739801		Wiring Harness		Appelez-nous	-
24	M0204617		Screw		Appelez-nous	-
25	M0102301		Clamp		Appelez-nous	-
26	A3168101		See Svc Ltr Cr-163d		Appelez-nous	-
27	M0274032		Washer Non-metal		Appelez-nous	-
28	M0282005		Nut K				$ 7.07
29	M0227520		Screw		Appelez-nous	-
31	M0205442		Screw, Nylock		Appelez-nous	-
32	A1013901		Guard-switch		Appelez-nous	-
33	B5107619		Gasket		Appelez-nous	-
35	M0213815		Screw		Appelez-nous	-
36	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
37	M0321204		Wire Tie		Appelez-nous	-
39	M0274032		Washer Non-metal		Appelez-nous	-
NI	M0114901		Clip		Appelez-nous	-
