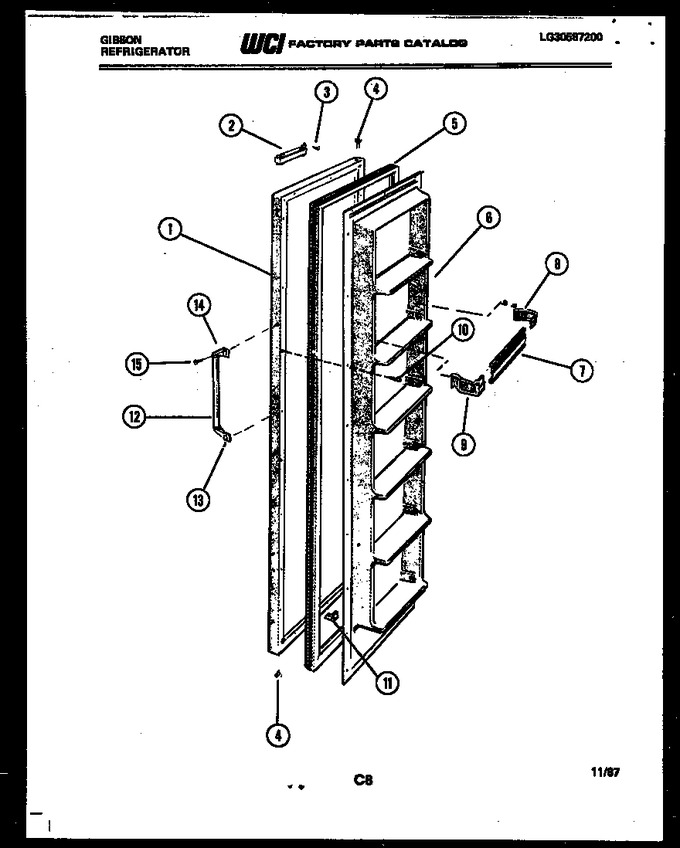

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G179359-08		Panel Frzr Avoc		Appelez-nous	-
1	G179359-09		Panel Frzr Weat		Appelez-nous	-
1	G179359-10		Panel Frzr Cofe		Appelez-nous	-
1	G179359-11		Panel Frzr Almd		Appelez-nous	-
1	G179359		Panel Frzr Whte		Appelez-nous	-
2	G161119		Door Closer		Appelez-nous	-
3	G162585		Screw		Appelez-nous	-
4	G183138		Bearing Hng Lwr		Appelez-nous	-
4	G183139		Bearing Hng Upr		Appelez-nous	-
5	G180551-03		Gasket-frzr		Appelez-nous	-
6	G164821-02		Panel Inner		Appelez-nous	-
7	G154541-40		Rack Door (6)		Appelez-nous	-
8	G155104-07		Support Rs (6)		Appelez-nous	-
9	G155102-07		Support Ls (6)		Appelez-nous	-
10	G162585		Screw		Appelez-nous	-
11	G165376		Bumper-light Sw.		Appelez-nous	-
12	G175666-06		Handle		Appelez-nous	-
13	G175809		Handle-end Top		Appelez-nous	-
14	G175810		Handle End-btm		Appelez-nous	-
15	G185566		Screw		Appelez-nous	-
11A	G169729		Screw-mtg (non-illustrated)		Appelez-nous	-
4A	G152308-01		Plug Button Lwr (non-illustrated)		Appelez-nous	-
