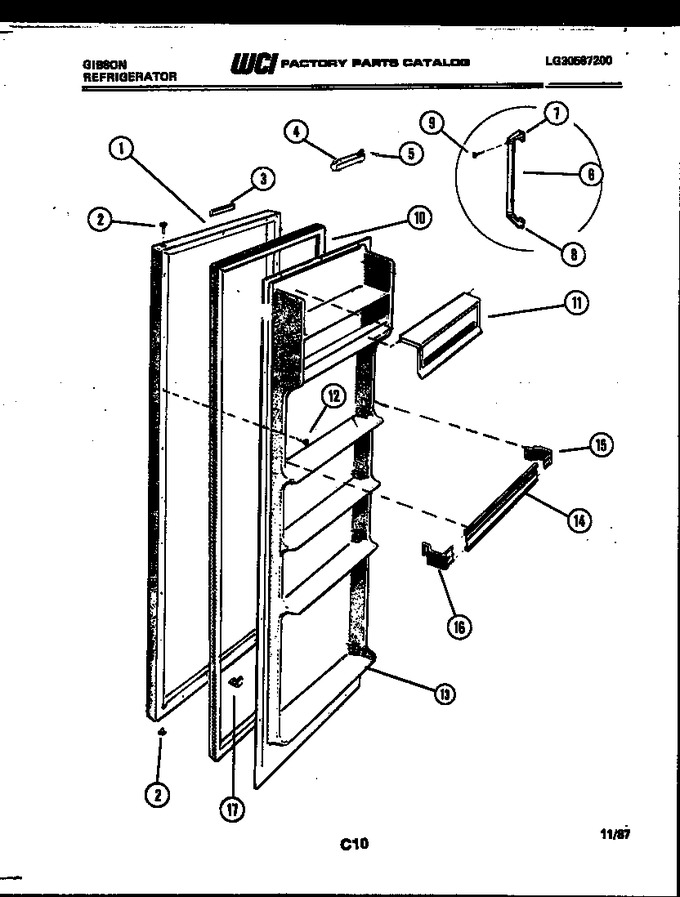

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G179361-10		Panel Refr Cofe		Appelez-nous	-
1	G179361-08		Panel Refr Avoc		Appelez-nous	-
1	G179361-09		Panel Refr Weat		Appelez-nous	-
1	G169618-11		Panel Refr Almd		Appelez-nous	-
1	G179361		Panel Refr Whte		Appelez-nous	-
2	G183139		Bearing Hng Upr		Appelez-nous	-
2	G183138		Bearing Hng Lwr		Appelez-nous	-
3	G175117-01		Nameplate Frame		Appelez-nous	-
4	G161119		Door Closer		Appelez-nous	-
5	G162585		Screw		Appelez-nous	-
6	G175666-06		Handle		Appelez-nous	-
7	G175809		Handle-end Top		Appelez-nous	-
8	G175810		Handle End-btm		Appelez-nous	-
9	G185566		Screw		Appelez-nous	-
10	G180551-01		Gasket-refr		Appelez-nous	-
11	G164842-16		Dairy Door		Appelez-nous	-
12	G162585		Screw		Appelez-nous	-
13	G164986-02		Panel Inner		Appelez-nous	-
14	G154541-39		Rack Door (4)		Appelez-nous	-
15	G155104-07		Support Rs (4)		Appelez-nous	-
16	G155103-07		Support Ls (4)		Appelez-nous	-
17	G165376		Bumper-light Sw.		Appelez-nous	-
*48744	G169729		Screw-mtg		Appelez-nous	-
2A	G152308-01		Plug Button Lwr (non-illustrated)		Appelez-nous	-
3A	G188378-02		Nameplate Label (non-illustrated)		Appelez-nous	-
3B	G153407-60		Tape-dbl Faced (non-illustrated)		Appelez-nous	-
