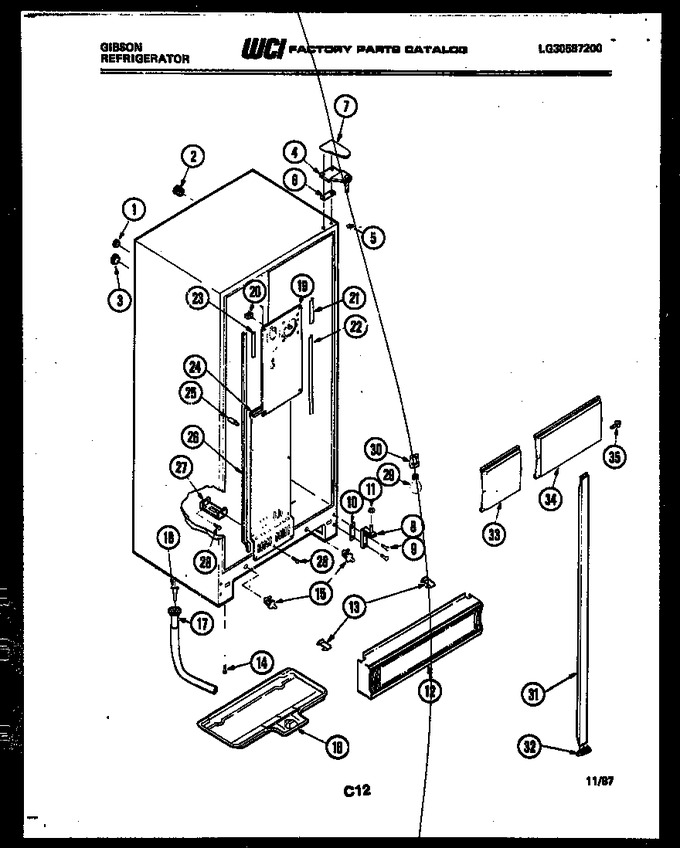

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G174734		Ferrule Outer		Appelez-nous	-
2	G85642		Tube, Rubber		Appelez-nous	-
3	G174733		Ferrule, Inner		Appelez-nous	-
4	G183715		Hinge-top Rs		Appelez-nous	-
5	G170156		Washer Hng (2)		Appelez-nous	-
6	G183861		Shim-hinge (2)		Appelez-nous	-
7	G183558-08		Cover-hng Avoc.		Appelez-nous	-
7	G183558-01		Cover-hng Whte		Appelez-nous	-
7	G183558-09		Cover-hng Weat		Appelez-nous	-
7	G183558-10		Cover-hng Cofe		Appelez-nous	-
7	G183558-11		Cover-hng Almd		Appelez-nous	-
8	G162383		Hinge Btm (2)		Appelez-nous	-
9	G99167		Screw Mtg (4)		Appelez-nous	-
10	G162903		Shim-hinge (6)		Appelez-nous	-
11	G164355		Washer-hinge (2)		Appelez-nous	-
12	G161904-01		Grille/kickplate		Appelez-nous	-
13	G162994		Clip Grille		Appelez-nous	-
14	G185726		Level Screw (2)		Appelez-nous	-
15	G149762		Switch, Light (2)		Appelez-nous	-
16	G162890		Pan, Defrost		Appelez-nous	-
17	G171192		Drain Outlet		Appelez-nous	-
18	G171193		Heat Conductor		Appelez-nous	-
19	G169481-01		Coil Cover Upr		Appelez-nous	-
20	G163669		Support Cov (2)		Appelez-nous	-
21	G165233		Gasket Cov (2)		Appelez-nous	-
22	G174234-02		Gasket Cov Rs		Appelez-nous	-
23	G174234-01		Gasket Cov Ls		Appelez-nous	-
24	G169477-03		Coil Cover Lwr		Appelez-nous	-
25	G169471		Support Cov (5)		Appelez-nous	-
26	G188000-03		Gasket Cov (2)		Appelez-nous	-
27	G158022		Bracket Cov Mtg		Appelez-nous	-
28	G187363		Screw		Appelez-nous	-
29	G168510		Lt Socket-frzr		Appelez-nous	-
30	G25806		Lt Bulb-frzr		Appelez-nous	-
31	G164643-08		Mullion Avoc.		Appelez-nous	-
31	G164643-01		Mullion-whte		Appelez-nous	-
31	G164643-10		Mullion-cofe		Appelez-nous	-
31	G164643-09		Mullion-weat		Appelez-nous	-
31	G164643-11		Mullion-almd		Appelez-nous	-
32	G169745-01		Trim-whte		Appelez-nous	-
32	G169745-08		Trim-avoc.		Appelez-nous	-
32	G169745-09		Trim-weat		Appelez-nous	-
32	G169745-10		Trim-cofe		Appelez-nous	-
32	G169745-11		Trim-almd		Appelez-nous	-
33	G164452-33		Lt Shield Frzr		Appelez-nous	-
34	G164419-28		Lt Shield Refr		Appelez-nous	-
35	G165177		Support Shld (6)		Appelez-nous	-
*48811	G162892-01		Plug Liner (4)		Appelez-nous	-
*48812	G187599		Plug Ice Maker Hole (3)		Appelez-nous	-
10A	G142361		Pin		Appelez-nous	-
10B	G77210		Nut, Speed (2) (non-illustrated)		Appelez-nous	-
19A	G165416-08		Decorative Plug (non-illustrated)		Appelez-nous	-
27A	G164820		Washer Lock (2)		Appelez-nous	-
27B	G184851		Screw Brkt		Appelez-nous	-
31A	G169100		Clip-mullion (3) (non-illustrated)		Appelez-nous	-
31B	G169297		Clip-mullion (3) (non-illustrated)		Appelez-nous	-
4A	G183716		Hinge-top Ls (non-illustrated)		Appelez-nous	-
7A	G167103		Screw Hng Mtg (non-illustrated)		Appelez-nous	-
9A	G141673		Nut		Appelez-nous	-
