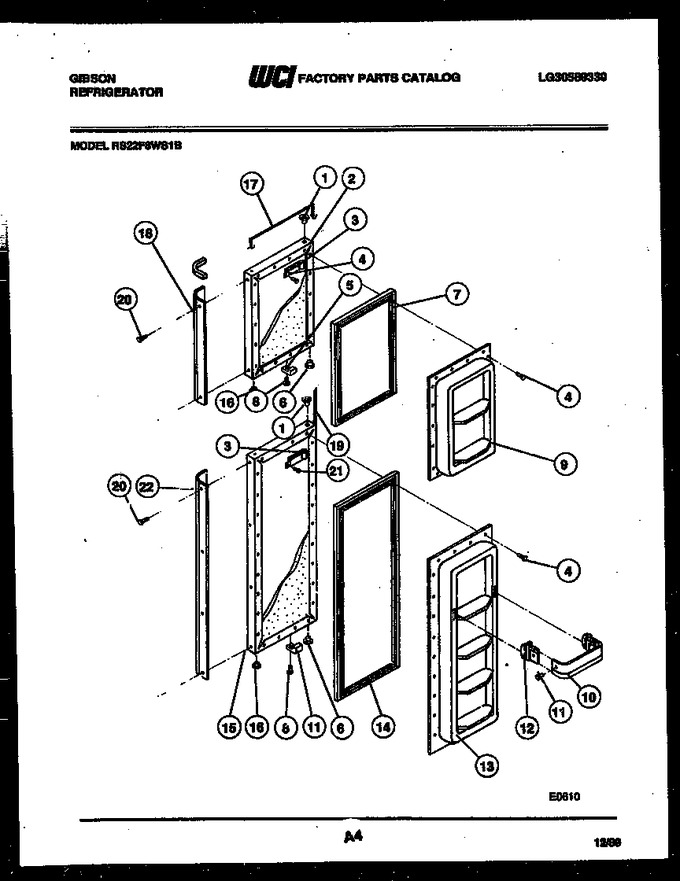

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Door Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Refrigerator Control Assembly, Damp
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G183139 | Bearing-hinge Upper (2) |
|
- | |||||
| 2 | G179402-10 | Panel-exterior-coffee |
|
- | |||||
| 2 | G179402-11 | Panel-exterior-almond |
|
- | |||||
| 2 | G179402-09 | Panel-exterior-wheat |
|
- | |||||
| 2 | G179402-08 | Panel-exterior-avocado |
|
- | |||||
| 2 | G179402 | Panel-exterior-white |
|
- | |||||
| 3 | G161119 | Closer (2) |
|
- | |||||
| 4 | G162585 | Screw |
|
- | |||||
| 5 | G169904 | Bumper-light Sw |
|
- | |||||
| 6 | G183138 | Bearing-hinge Lower (2) |
|
- | |||||
| 7 | 3200799 | Gasket Upper |
|
- | |||||
| 8 | G169729 | Screw (2) |
|
- | |||||
| 9 | G169488-02 | Panel-interior Upper |
|
- | |||||
| 10 | G154541-46 | Rack-door (6) |
|
- | |||||
| 11 | G165376 | Bumper-light Sw. |
|
- | |||||
| 12 | 5303208317 | Support Lh (12) |
|
- | |||||
| 13 | G169489-02 | Panel-interior Lower |
|
- | |||||
| 14 | 3200800 | Gasket Lower |
|
- | |||||
| 15 | G170478 | Panel-exterior-white |
|
- | |||||
| 15 | G170478-08 | Panel-exterior-avocado |
|
- | |||||
| 15 | G170478-09 | Panel-exterior-wheat |
|
- | |||||
| 15 | G170478-10 | Panel-exterior-coffee |
|
- | |||||
| 15 | G170478-11 | Panel-exterior-almond |
|
- | |||||
| 16 | G152308-01 | Button-plug (2) |
|
- | |||||
| 17 | G170573-04 | Trim-door |
|
- | |||||
| 18 | G170619-01 | Handle-upper |
|
- | |||||
| 19 | G167150-07 | Trim-door |
|
- | |||||
| 20 | G185566 | Screw |
|
- | |||||
| 21 | G162585 | Screw |
|
- | |||||
| 22 | G170619-02 | Handle Lower |
|
- | |||||
| 12A | 5303208318 | Support Rh (12) (non-illustrated) |
|
- |
