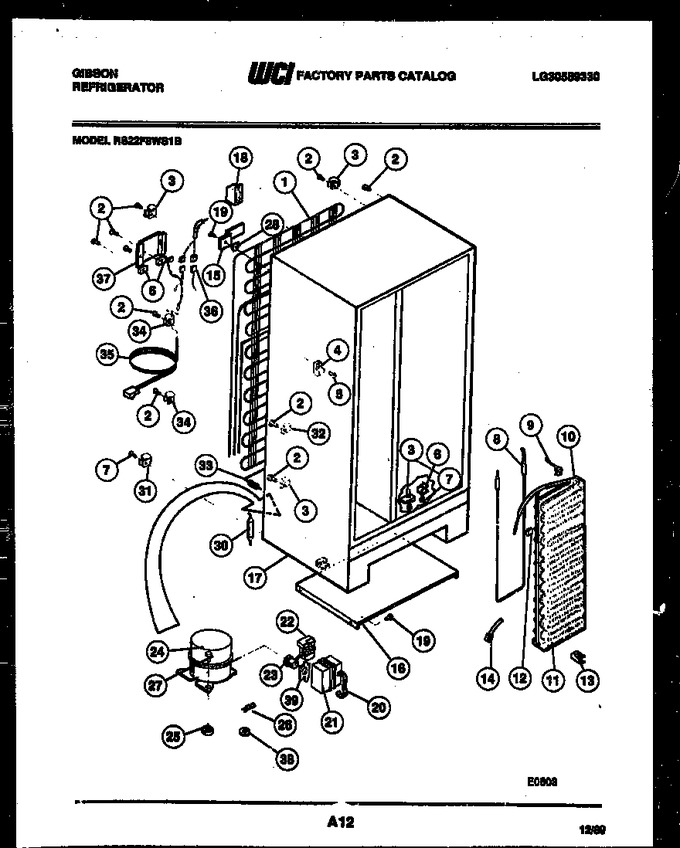

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G188597		Condenser		Appelez-nous	-
2	G162585		Screw		Appelez-nous	-
3	G161655		Clamp-tube (4)		Appelez-nous	-
4	G166705		Clamp		Appelez-nous	-
5	G187363		Screw		Appelez-nous	-
6	G165184		Clamp-strain Relief (3)		Appelez-nous	-
7	G144049		Screw		Appelez-nous	-
8	3007568		Heater-defrost		Appelez-nous	-
9	3007540		Thermostat-defrost		Appelez-nous	-
10	G189609		Exchanger-heat		Appelez-nous	-
11	3206421		Evaporator		Appelez-nous	-
12	G169493		Block Coil (4)		Appelez-nous	-
13	G167363		Support, Defrost Heater		Appelez-nous	-
14	G165546		Strap-aluminum		Appelez-nous	-
15	G169666-01		Bracket, Condenser Mounting (4)		Appelez-nous	-
16	G188596		Defrost Plate		Appelez-nous	-
17	G164354		Clip-defrost		Appelez-nous	-
18	G171111		Bracket (4)		Appelez-nous	-
19	G160578		Screw		Appelez-nous	-
20	G166057		Strap, Bale		Appelez-nous	-
21	G166056		Cover, Terminal		Appelez-nous	-
22	G182225-04		Relay		Appelez-nous	-
23	G188727		Overload		Appelez-nous	-
24	3916016		Compressor W/electrical-svce		Appelez-nous	-
25	G177617		Grommet (4)		Appelez-nous	-
26	G163204		Clip-compressor (4)		Appelez-nous	-
27	G183344		Screw (3)		Appelez-nous	-
28	G164820		Washer Lock (2)		Appelez-nous	-
29	G169486		Harness-wire		Appelez-nous	-
30	G186717		Drier		Appelez-nous	-
31	G88088		Clamp-tube		Appelez-nous	-
32	G168979		Clamp (2)		Appelez-nous	-
33	G103457		Sleeve		Appelez-nous	-
34	G27669		Clamp-cable (3)		Appelez-nous	-
35	G162549-01		Cord, Service		Appelez-nous	-
36	G164579		Harness-wiring		Appelez-nous	-
37	G183584		Cover, Wiring		Appelez-nous	-
38	G164634		Washer-compressor (4)		Appelez-nous	-
39	3017762		Clip-overload		Appelez-nous	-
37A	G189379		Kit-hot Tube Repair (non-illustrated)		Appelez-nous	-
