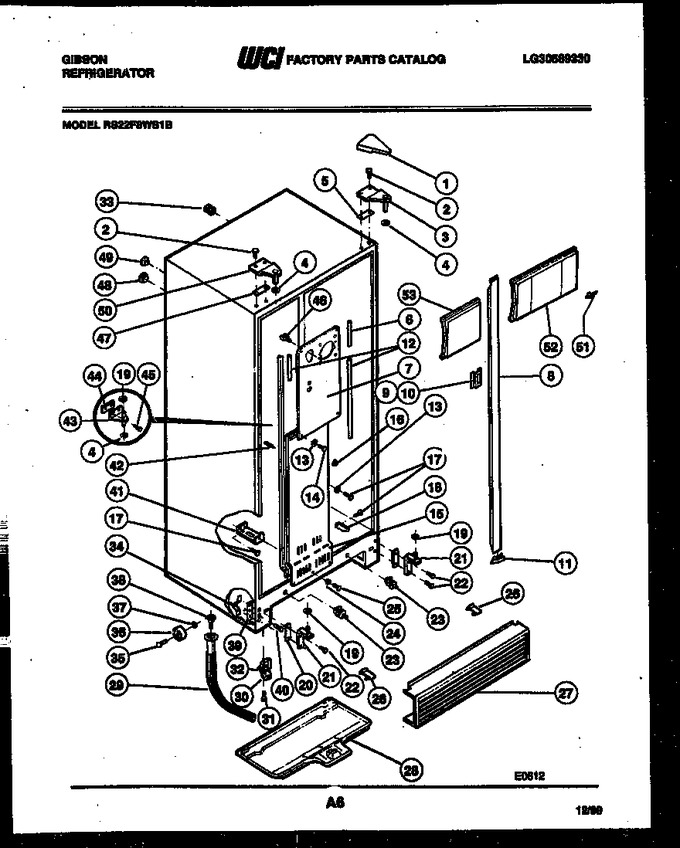

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G183558-08 | Cover-top Hinge (2)-avocado |
|
- | |||||
| 1 | G183558-09 | Cover-top Hinge (2)-wheat |
|
- | |||||
| 1 | G183558-10 | Cover-top Hinge (2)-coffee |
|
- | |||||
| 1 | G183558-11 | Cover-top Hinge (2)-almond |
|
- | |||||
| 1 | G183558-01 | Cover-top Hinge (2)-white |
|
- | |||||
| 2 | G167103 | Screw-1/4-20 (4) |
|
- | |||||
| 3 | G183715 | Hinge, Upper, Rh |
|
- | |||||
| 4 | G164355 | Washer-nylon (3) |
|
- | |||||
| 5 | G183861 | Shim, Upper Hinge |
|
- | |||||
| 6 | G165233 | Gasket-coil Cover (2) |
|
- | |||||
| 7 | G169481-01 | Cover, Upper Coil |
|
- | |||||
| 8 | G164643-11 | Mullion, Almond |
|
- | |||||
| 8 | G164643-01 | Mullion, White |
|
- | |||||
| 8 | G164643-08 | Mullion, Avocado |
|
- | |||||
| 8 | G164643-09 | Mullion, Wheat |
|
- | |||||
| 8 | G164643-10 | Mullion, Coffee |
|
- | |||||
| 9 | G169100 | Clip-mullion (3) |
|
- | |||||
| 10 | G169297 | Clip-mullion (3) |
|
- | |||||
| 11 | G169745-09 | Trim, Mullion, Wheat |
|
- | |||||
| 11 | G169745-08 | Trim, Mullion, Avocado |
|
- | |||||
| 11 | G169745-11 | Trim, Mullion, Almond |
|
- | |||||
| 11 | G169745-10 | Trim, Mullion, Coffee |
|
- | |||||
| 11 | G169745-01 | Trim-mullion-white |
|
- | |||||
| 12 | G188853 | Gasket |
|
- | |||||
| 13 | G170839 | Washer Nylon (8) |
|
- | |||||
| 14 | G187363 | Screw |
|
- | |||||
| 15 | G169477-02 | Cover-lower Coil |
|
- | |||||
| 16 | G162703 | Clip, Grounding |
|
- | |||||
| 17 | G163980 | Screw (3) |
|
- | |||||
| 18 | G164912-03 | Damper, Meat Keeper |
|
- | |||||
| 19 | G170156 | Washer-nylon (3) |
|
- | |||||
| 20 | G162903 | Shim-lower Hinge (2) |
|
- | |||||
| 21 | G162383 | Hinge-lower (2) |
|
- | |||||
| 22 | G99167 | Screw (4) |
|
- | |||||
| 23 | G149762 | Switch (2) |
|
- | |||||
| 24 | G164820 | Washer-exterior Lock (2) |
|
- | |||||
| 25 | G184851 | Screw |
|
- | |||||
| 26 | G170328 | Clip, Grille (2) |
|
- | |||||
| 27 | G170326-01 | Grille-lower Front |
|
- | |||||
| 28 | G171125 | Pan, Defrost |
|
- | |||||
| 29 | G171192 | Tube-drain |
|
- | |||||
| 30 | G186731 | Assembly Roller Adjustment (2) |
|
- | |||||
| 31 | G187491 | Screw 2/16 (2) |
|
- | |||||
| 32 | G166171 | Screw (2) |
|
- | |||||
| 33 | G85642 | Tube-rubber (4) |
|
- | |||||
| 34 | G77210 | Nut-stud Speed (2) |
|
- | |||||
| 35 | G162809 | Pin (2) |
|
- | |||||
| 36 | G162808 | Roller (2) |
|
- | |||||
| 37 | G162662 | Nut - Push (2) |
|
- | |||||
| 38 | G171193 | Conductor, Heat |
|
- | |||||
| 39 | G141673 | Nut |
|
- | |||||
| 40 | G142361 | Pin |
|
- | |||||
| 41 | G158022 | Bracket, Cover Mounting |
|
- | |||||
| 42 | G169471 | Support-coil Cover (5) |
|
- | |||||
| 43 | G169531 | Bracket-center Hinge |
|
- | |||||
| 44 | G169610 | Shim-center Hinge |
|
- | |||||
| 45 | G183103 | Screw 10-24 (2) |
|
- | |||||
| 46 | G163669 | Support, Coil Cover (2) |
|
- | |||||
| 47 | G183861 | Shim, Upper Hinge |
|
- | |||||
| 48 | G174733 | Ferrule - Inner (2) |
|
- | |||||
| 49 | G174734 | Ferrule-outer (2) |
|
- | |||||
| 50 | G183716 | Hinge, Upper, Lh |
|
- | |||||
| 51 | G165177 | Support-shield (8) |
|
- | |||||
| 52 | G169601-18 | Shield-refrigerator Light |
|
- | |||||
| 53 | G164452-33 | Shield-freezer Light |
|
- |
