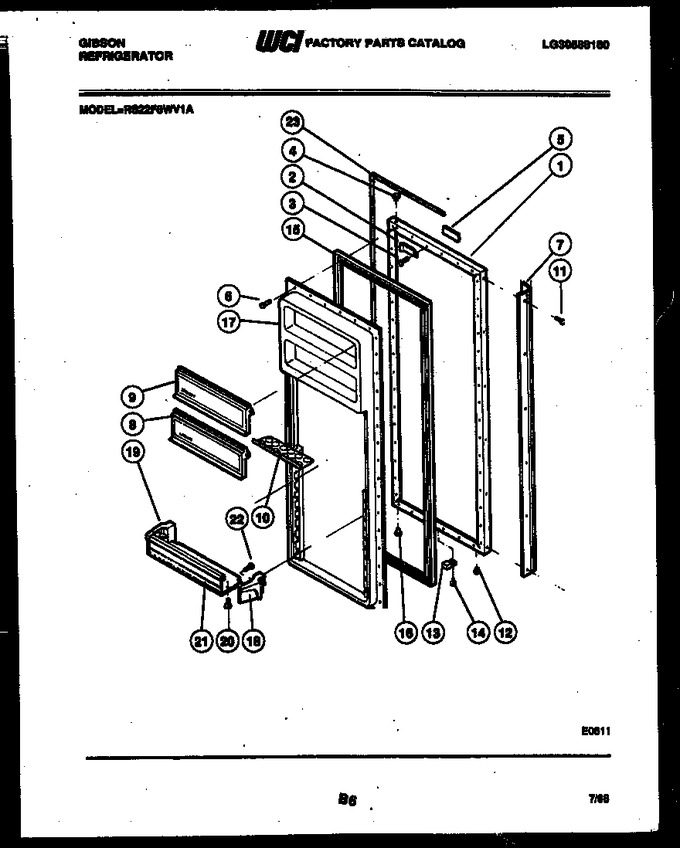

02 - Door Parts


03 - Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


08 - Ice Maker Parts


09 - Ice Maker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G179400-08		Panel-exterior Refrigerator-avocado		Appelez-nous	-
1	G179400-09		Panel-exterior Refrigerator-wheat		Appelez-nous	-
1	G179400-10		Panel-exterior Refrigerator-coffee		Appelez-nous	-
1	G179400-11		Panel-exterior Refrigerator-almond		Appelez-nous	-
1	G179400		Panel-exterior Refrigerator-white		Appelez-nous	-
2	G16119		Closer-door		Appelez-nous	-
3	G169729		Screw-closer Mounting		Appelez-nous	-
4	G183139		Bearing, Hinge		Appelez-nous	-
5	G175117-02		Frame-nameplate		Appelez-nous	-
6	G162585		Screw		Appelez-nous	-
7	G170619-03		Handle-door		Appelez-nous	-
8	G170930-14		Door-compartment		Appelez-nous	-
9	G170930-14		Door-compartment		Appelez-nous	-
10	G173948-27		Container-egg		Appelez-nous	-
11	G185566		Screw		Appelez-nous	-
12	G152308-01		Plug-button		Appelez-nous	-
13	G165376		Bumper - Light Switch		Appelez-nous	-
14	G162585		Screw		Appelez-nous	-
15	3200473		Gasket-refrigerator		Appelez-nous	-
16	G183138		Bearing, Hinge		Appelez-nous	-
17	G171411-02		Panel-inner		Appelez-nous	-
18	G163781-03		Support-shelf Rs (4)		Appelez-nous	-
19	G163780-03		Support-shelf Ls (4)		Appelez-nous	-
20	G101890		Rivet		Appelez-nous	-
21	G164109-21		Shelf-door (4)		Appelez-nous	-
22	G167115		Screw (8)		Appelez-nous	-
23	G170573-05		Trim-door		Appelez-nous	-
5A	G188378-06		Label-nameplate Upper		Appelez-nous	-
5B	G175393-01		Label, Nameplate, Lower		Appelez-nous	-
