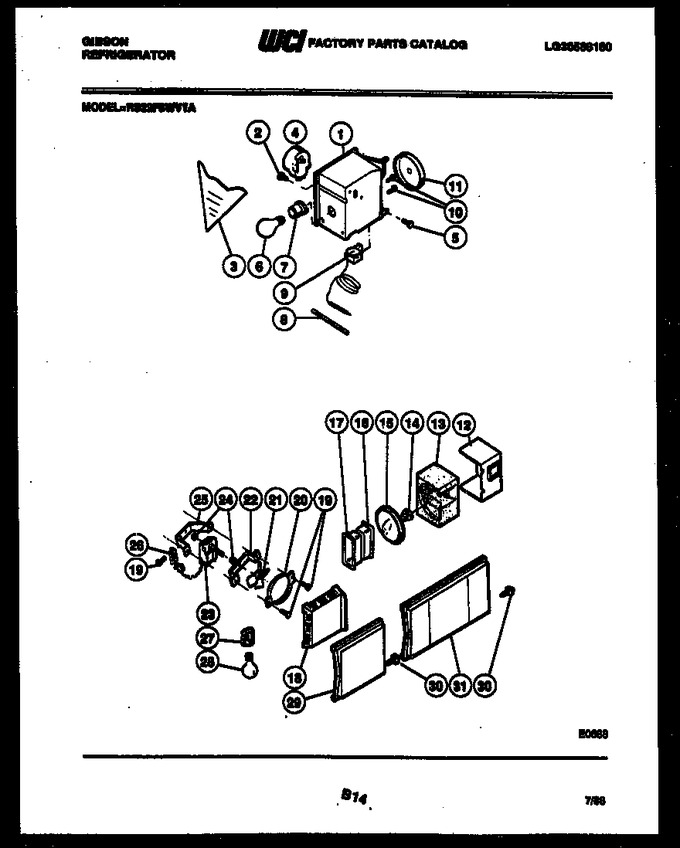

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G189359		Control Box-temp		Appelez-nous	-
2	G166567		Screw-box Mounting (2)		Appelez-nous	-
3	G165434		Insulation-box Rear		Appelez-nous	-
4	G187484		Timer		Appelez-nous	-
5	G105289		Screw		Appelez-nous	-
6	G25806		Light Bulb		Appelez-nous	-
7	G168302		Light Socket		Appelez-nous	-
8	G142176-11		Sleeve-plastic Tube		Appelez-nous	-
9	G162205-05		Control-temperature		Appelez-nous	-
10	G107080		Screw		Appelez-nous	-
11	G164906-01		Knob, Temperature Control		Appelez-nous	-
12	G164523		Control Box-damper		Appelez-nous	-
13	G164575		Air Deflector		Appelez-nous	-
14	G185373		Rivet, Expansion		Appelez-nous	-
15	G165217-01		Knob-damper Cntrl		Appelez-nous	-
16	G166803		Ferrule-outer		Appelez-nous	-
17	G166802		Ferrule-inner		Appelez-nous	-
18	G164654-01		Cover-fan		Appelez-nous	-
19	G162585		Screw		Appelez-nous	-
20	G167217		Ring, Fan Orifice		Appelez-nous	-
21	G174705		Fan Blade		Appelez-nous	-
22	G185302		Bracket-front		Appelez-nous	-
23	G158289		Motor-fan		Appelez-nous	-
24	G187559		Bushing (2)				$ 48.20
25	G185303		Bracket-rear		Appelez-nous	-
26	G164571		Bracket, Connector		Appelez-nous	-
27	G168510		Light Socket-freezer Upper		Appelez-nous	-
28	G25806		Light Bulb		Appelez-nous	-
29	3200803		Light Shield-freezer Upper		Appelez-nous	-
30	G165177		Support-shield (6)		Appelez-nous	-
31	3015073		Light Shield-refrigerator		Appelez-nous	-
11A	3015074		Wiring Harness-control (non-illustrated)		Appelez-nous	-
11B	G162703		Clip-grounding (non-illustrated)		Appelez-nous	-
16A	G167582		Gasket-ferrule (non-illustrated)		Appelez-nous	-
20A	G167542		Nut-u Type (2) (non-illustrated)		Appelez-nous	-
