02 - Door Parts


03 - Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


08 - Ice Maker Parts


09 - Ice Maker Installation Parts

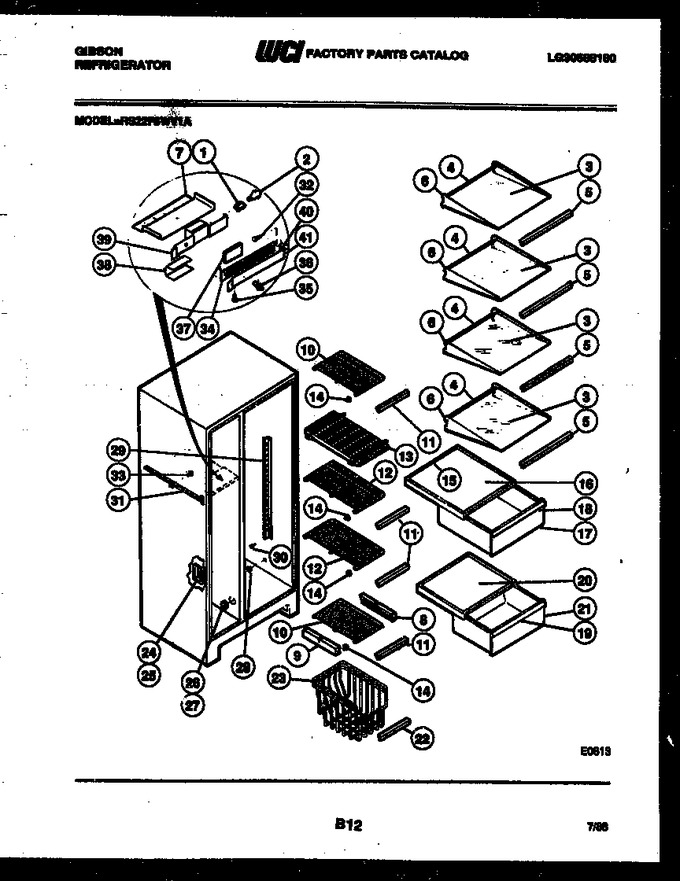

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G168302		Light Socket		Appelez-nous	-
2	G25806		Light Bulb		Appelez-nous	-
3	G171654-44		Glass-shelf (4)		Appelez-nous	-
4	G172409-01		Trim-shelf Rear (4)		Appelez-nous	-
5	G172410-01		Trim-shelf Front (4)		Appelez-nous	-
6	G186156-03		Frame-shelf (4)		Appelez-nous	-
7	G169635		Moulding-3 Door		Appelez-nous	-
8	G168986		Hanger-basket Rs		Appelez-nous	-
9	G166987		Hanger-basket Ls		Appelez-nous	-
10	G180425-08		Shelf-freezer (2)		Appelez-nous	-
11	3016382		Trim-shelf (4)		Appelez-nous	-
12	G180425-07		Shelf-freezer (2)		Appelez-nous	-
13	G169712		Shelf-freezer Plastic		Appelez-nous	-
14	G167565		Grommet-shelf (10)		Appelez-nous	-
15	G180108-03		Gasket-cover		Appelez-nous	-
16	G169711-02		Cover-upper Pan		Appelez-nous	-
17	G179709-03		Pan-storage Upper		Appelez-nous	-
18	G177343-12		Trim, Upper Pan		Appelez-nous	-
19	G177343-11		Trim, Lower Pan		Appelez-nous	-
20	G169724-02		Cover-lower Pan		Appelez-nous	-
21	G179710-02		Pan-storage Lower		Appelez-nous	-
22	G172410-20		Trim-basket		Appelez-nous	-
23	3017211		Basket		Appelez-nous	-
24	G166800		Ferrule Inner		Appelez-nous	-
25	G166801		Ferrule Outer		Appelez-nous	-
26	G166802		Ferrule-inner		Appelez-nous	-
27	G166803		Ferrule-outer		Appelez-nous	-
28	G162892-01		Button Plug (2)		Appelez-nous	-
29	G170694		Channel-shelf (2)		Appelez-nous	-
30	G166567		Screw 1/4 X 1 (8)		Appelez-nous	-
31	G169709		Channel-wiring		Appelez-nous	-
32	G183103		Screw (2)		Appelez-nous	-
33	G187363		Screw		Appelez-nous	-
34	G169756		Heater-mullion		Appelez-nous	-
35	G99660		Screw 8-18 X 3/8		Appelez-nous	-
36	G149762		Light Switch		Appelez-nous	-
37	G175156		Insulation-mullion		Appelez-nous	-
38	G169516		Cover-light Socket		Appelez-nous	-
39	G169529		Strap-light Mounting		Appelez-nous	-
40	G169530-08		Trim-mullion-avocado		Appelez-nous	-
40	G169530-09		Trim-mullion-wheat		Appelez-nous	-
40	G169530-10		Trim-mullion-coffee		Appelez-nous	-
40	G169530-11		Trim-mullion-almond		Appelez-nous	-
40	G169530-01		Trim-mullion-white		Appelez-nous	-
41	G169490-10		Mullion-coffee		Appelez-nous	-
41	G169490-11		Mullion-almond		Appelez-nous	-
41	G169490-01		Mullion-white		Appelez-nous	-
41	G169490-08		Mullion-avocado		Appelez-nous	-
41	G169490-09		Mullion-wheat		Appelez-nous	-
