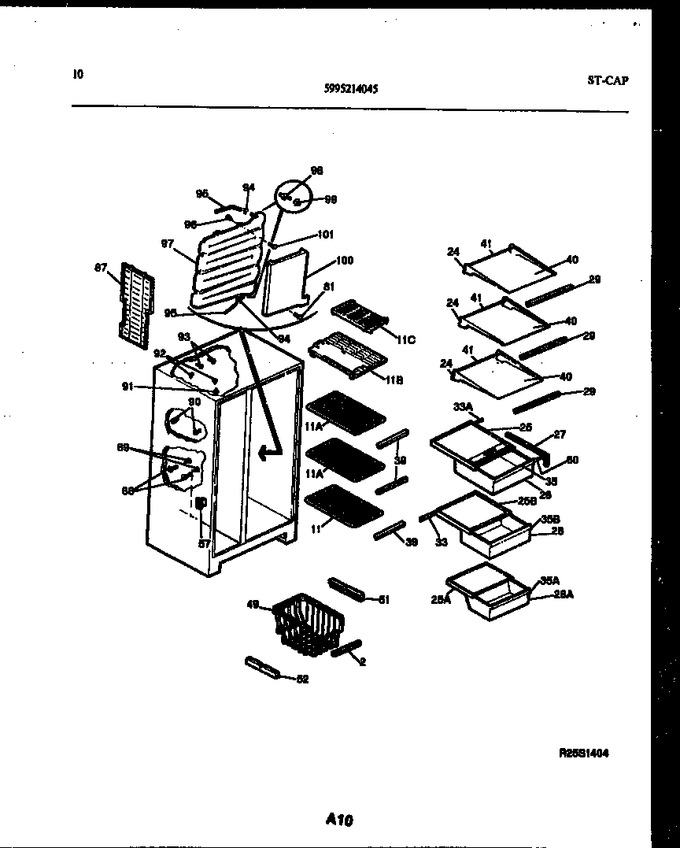

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303209752 | Trim-basket, Snap-on |
|
- | |||||
| 11 | 3017947 | Shelf-freezer |
|
- | |||||
| 24 | 5303209744 | Frame-refr Shelf, Cantilever, (3) |
|
- | |||||
| 25 | 5303206938 | Cover-crisper Pan, Upper |
|
- | |||||
| 26 | 5303275349 | Pan-storage, Upper & Middle |
|
- | |||||
| 27 | 5303201640 | Support-crisper Cvr, Rh |
|
- | |||||
| 29 | 5303275418 | Trim-refr Shelf, Snap-on, Front, (3) |
|
- | |||||
| 33 | 5303205880 | Gasket-crisper Cover |
|
- | |||||
| 35 | 5303276702 | Trim-storage Pan, Upper |
|
- | |||||
| 39 | 5303276708 | Trim-frzr Shelf, Snap-on, (3) |
|
- | |||||
| 40 | 5303276712 | Shelf-glass, Refr Shelf, (3) |
|
- | |||||
| 41 | 5303211974 | Trim-full Shelf, Snap-on, Rear, (3) |
|
- | |||||
| 49 | 3017945 | Basket-sliding |
|
- | |||||
| 51 | 5303001098 | Hanger, Basket, Rh |
|
- | |||||
| 52 | 5303001099 | Hanger, Basket, Lh |
|
- | |||||
| 57 | 5303271652 | Ferrule-outer |
|
- | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 87 | 5308010353 | Divider-icemaker |
|
- | |||||
| 88 | 5308000244 | Support-frzr Shelf |
|
- | |||||
| 89 | 5303001290 | Screw-shelf Support, Cr Flat Head, 8(ab) X 1-3/8 |
|
- | |||||
| 11A | 3017949 | Shelf-freezer, (2) |
|
- | |||||
| 11B | 5303001104 | Shelf-freezer, Plastic, Lower |
|
- | |||||
| 11C | 5303001152 | Shelf-freezer, Plastic, Upper |
|
- | |||||
| 11D | 08010342 | Label-lwr Frzr Shelf (non-illustrated) |
|
- | |||||
| 11E | 08010356 | Label-upr Frzr Shelf (non-illustrated) |
|
- | |||||
| 25A | 5316972401 | Cover-crisper Pan, Lower |
|
- | |||||
| 25B | 5308009642 | Cover-crisper Pan, Middle |
|
$ 163.55 | |||||
| 25C | 3204600 | Trim-crisper Cover, Upper (non-illustrated) |
|
- | |||||
| 25D | 5303206670 | Control-humidity (non-illustrated) |
|
- | |||||
| 25E | 5303276703 | Shelf-glass, Crisper Cover (non-illustrated) |
|
- | |||||
| 26A | 5303275350 | Pan-storage, Lower |
|
- | |||||
| 27A | 5303201639 | Support-crisper Cvr, Lh (non-illustrated) |
|
$ 69.09 | |||||
| 29A | 5303209742 | Retainer-glass (3) (non-illustrated) |
|
- | |||||
| 33A | 5308009648 | Gasket-crisper Cover |
|
- | |||||
| 35A | 5303275339 | Trim-storage Pan, Lower |
|
- | |||||
| 35B | 5303276701 | Trim-storage Pan, Middle |
|
- | |||||
| 41A | 5303211351 | Lock-rear Trim (non-illustrated) |
|
- |
