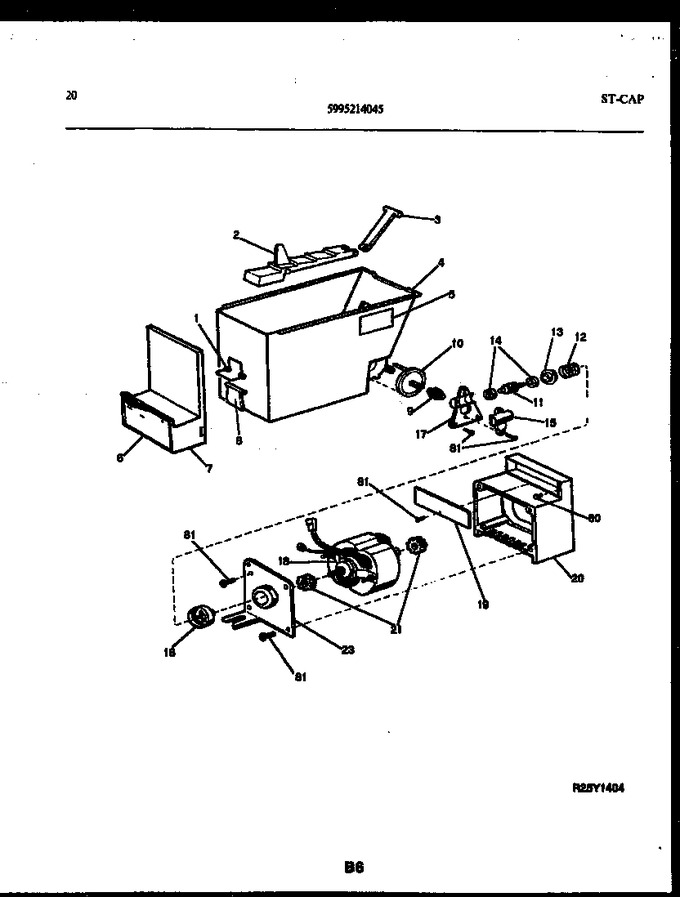

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300184853		Spring-ice Cntnr Dr		Appelez-nous	-
2	5301123547		Ram-ice Dispenser		Appelez-nous	-
3	5303205890		Deflector-ice Disp		Appelez-nous	-
4	5303017840		Container-ice		Appelez-nous	-
5	5303016895		Label-ice Container		Appelez-nous	-
6	5303276711		Label-ice Dispenser		Appelez-nous	-
7	5303017839		Front-ice Container		Appelez-nous	-
8	5317440701		Door-ice Container		Appelez-nous	-
9	5301123566		Worm Gear, Ice Ram Drive		Appelez-nous	-
10	5301123568		Disc-ice Ram Drive		Appelez-nous	-
11	5301124161		Worm-ice Ram Drive		Appelez-nous	-
12	5301123767		Spring-ice Disp Drive		Appelez-nous	-
13	5308017407		Coupling, Ice Disp Cntnr		Appelez-nous	-
14	5301123508		Bearing-rear (2)		Appelez-nous	-
15	5301123570		Cover-housing, Ice Ram Drive		Appelez-nous	-
16	5301123771		Coupling-ice Disp Mtr		Appelez-nous	-
17	5300174408		Housing-ice Ram Drive		Appelez-nous	-
18	5308017049		Motor-ice Disp Ram		Appelez-nous	-
19	5308010346		Cover-ice Disp Mtr Hsg		Appelez-nous	-
20	5308010343		Housing-ice Disp Mtr		Appelez-nous	-
21	5301123769		Mount-ice Disp Mtr, (2)		Appelez-nous	-
23	5303001106		Bracket-ice Disp Mtr		Appelez-nous	-
60	5308010253		Screw		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*45128	08010378		Bracket-motor Mtg		Appelez-nous	-
