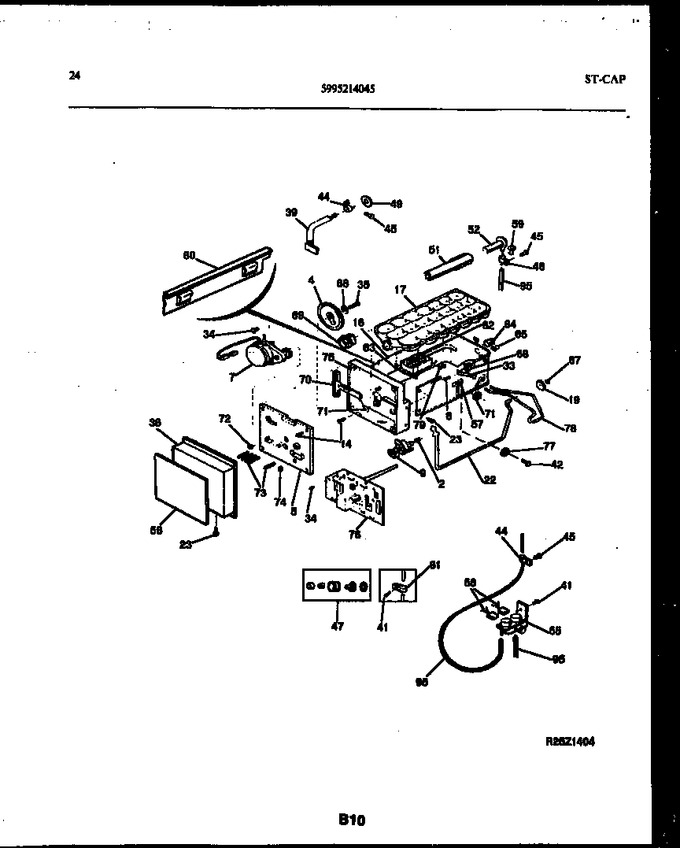

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 61 | 5304455846 | Clamp-copper Tube, Steel (Replaces: 5303001549) |
|
$ 10.63 | |||||
| 62 | 5303001141 | Insulator-thermostat |
|
$ 23.52 | |||||
| 63 | 5301138379 | Retainer-insulator |
|
$ 3.89 | |||||
| 64 | 5300618683 | Pivot-tray |
|
- | |||||
| 65 | 5303001132 | Spring-tray Return |
|
- | |||||
| 66 | 5301121693 | Nut, Push-in |
|
- | |||||
| 67 | 5301138171 | Retainer Ring |
|
- | |||||
| 68 | 5303001117 | Washer-crank Shaft |
|
- | |||||
| 69 | 5301124972 | Gear-sliding Spur |
|
- | |||||
| 70 | 5303001136 | Rack-gear |
|
- | |||||
| 71 | 5301124979 | Washer-flat (2) |
|
- | |||||
| 72 | 5303001118 | Nut, Hex-lh Thread, 10-32 |
|
- | |||||
| 73 | 5301124987 | Follower Pin-cam (5) |
|
- | |||||
| 74 | 5308010348 | Retainer Ring-cam |
|
- | |||||
| 75 | 5303001143 | Housing-mechanism |
|
- | |||||
| 76 | 5308011238 | Pc Board |
|
- | |||||
| 77 | 5303001216 | Washer-nylon,3/16 X 5/8 Od |
|
- | |||||
| 78 | 5301138222 | Shut-off Wire |
|
- | |||||
| 79 | 5303001125 | Retainer-wire (2) |
|
- | |||||
| 80 | 5300175135 | Extension-frame |
|
- | |||||
| 95 | 5318582501 | Tube-water Inlet, 93``, Plastic, Cut To Size |
|
- | |||||
| *45135 | 5303207333 | Holder-tube |
|
- | |||||
| *45136 | 65801LF | Saddle-valve Kit (Replaces: 5308000247) |
|
Immediately | $ 8.27 |
