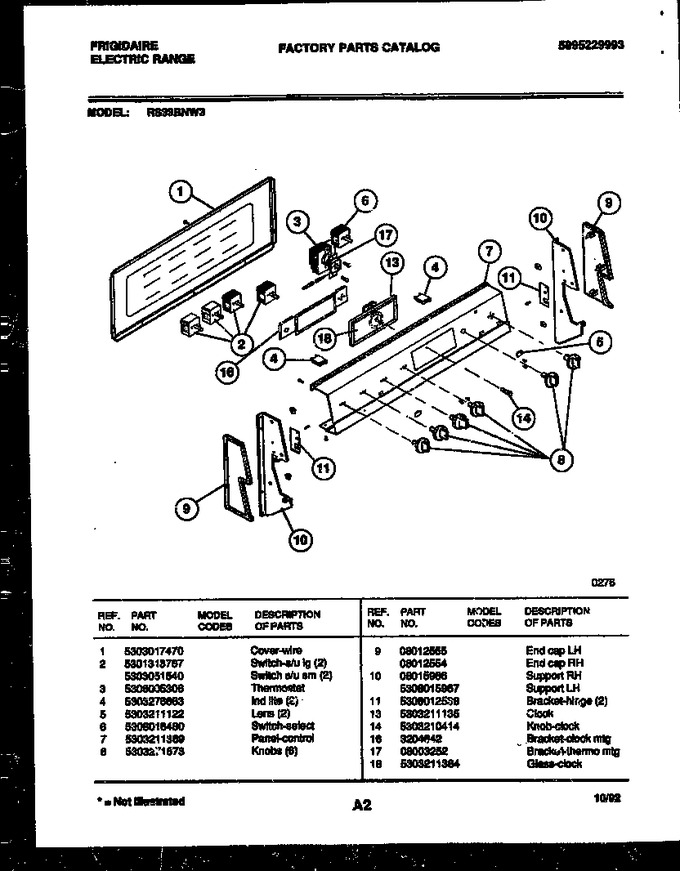

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5301313767 | Switch-s/u Lg. (2) |
|
- | |||||
| 3 | 5308005306 | Thermostat |
|
- | |||||
| 4 | 5303276663 | Ind Lite (2) |
|
$ 59.12 | |||||
| 5 | 5303211122 | Lens (2) |
|
- | |||||
| 6 | 5308016480 | Switch - Select |
|
$ 402.15 | |||||
| 7 | 5303211369 | Panel-control |
|
- | |||||
| 8 | 5303271673 | Knobs (6) |
|
- | |||||
| 9 | 08012555 | End Cap, Lh |
|
- | |||||
| 10 | 08015966 | Support Rh |
|
- | |||||
| 11 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 13 | 5303211135 | Clock |
|
- | |||||
| 14 | 5303210414 | Knob, Clock |
|
- | |||||
| 16 | 3204642 | Bracket-clock Mtg |
|
- | |||||
| 17 | 08003252 | Bracket - Thermostat |
|
- | |||||
| 18 | 5303211384 | Glass-clock |
|
- | |||||
| 10A | 5308015967 | Support - Lh |
|
- | |||||
| 2A | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 9A | 08012554 | End Cap, Rh |
|
- |
