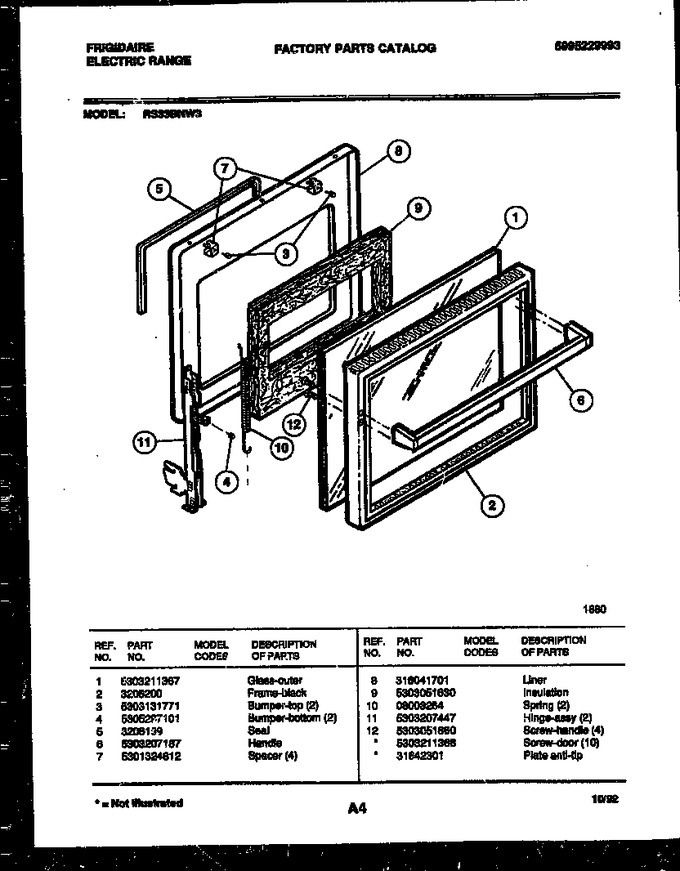

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303211367 | Glass-outer |
|
- | |||||
| 2 | 3206200 | Frame-black |
|
- | |||||
| 3 | 5303131771 | Bumper-top (2) |
|
- | |||||
| 4 | 53035297101 | Bumper-bottom (2) |
|
- | |||||
| 5 | 3206199 | Seal |
|
- | |||||
| 6 | 5303207187 | Handle |
|
- | |||||
| 7 | 5301324812 | Spacer (4) |
|
- | |||||
| 8 | 316041701 | Liner |
|
- | |||||
| 9 | 5303051630 | Insulation |
|
- | |||||
| 10 | 08003264 | Spring-oven Door |
|
- | |||||
| 11 | 5303207447 | Hinge-assy (2) |
|
- | |||||
| 12 | 5303051860 | Screw, Handle (4) |
|
- | |||||
| *69088 | 31642301 | Plate Anti-tip |
|
- | |||||
| 12A | 5303211368 | Screw-door (10) |
|
- |
