02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

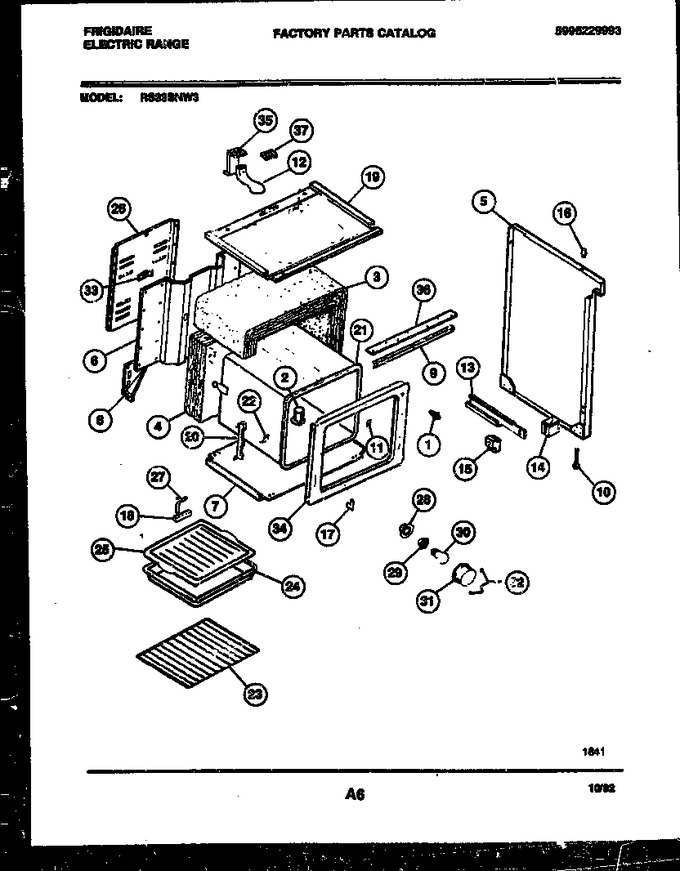

| 1 | 5301314211 | Switch-oven Light |
|
$ 95.29 | |||||
| 2 | 5303206498 | Tube-oven Vent |
|
- | |||||
| 3 | 3051521 | Insulation - Oven Wrap |
|
- | |||||
| 4 | 5303274967 | Insulation-oven Back |
|
- | |||||
| 5 | 5308012529 | Panel-side Rh-almd |
|
- | |||||
| 6 | 3205757 | Back |
|
- | |||||
| 7 | 3206275 | Panel, Bottom |
|
- | |||||
| 8 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 9 | 5303207391 | Support-subtop |
|
- | |||||
| 10 | 5303205540 | Screw-leveling (4) |
|
- | |||||
| 11 | 3202082 | Cover Seam |
|
- | |||||
| 12 | 3051655 | Tube-vent Upper |
|
- | |||||
| 13 | 3051652 | Rail, Drawer Lh |
|
- | |||||
| 13 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 14 | 3051653 | Spacer, Drawer Rail (2) |
|
- | |||||
| 15 | 3051654 | Guide, Drawer Front (2) |
|
- | |||||
| 16 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 17 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 18 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 19 | 5303292687 | Panel - Subtop |
|
- | |||||
| 20 | 3201631 | Channel Assy Hinges (2) |
|
$ 58.22 | |||||
| 21 | 5303202686 | Liner-oven |
|
- | |||||
| 22 | 3201632 | Spacer-oven |
|
- | |||||
| 23 | 5303281625 | Rack-oven (2) |
|
- | |||||
| 24 | 5303292688 | Pan-broiler |
|
- | |||||
| 25 | 5303293176 | Grille - Broiler |
|
- | |||||
| 26 | 5303051856 | Wire, Cover |
|
- | |||||
| 27 | 5301145190 | Strap, Ground |
|
- | |||||
| 28 | 5303271606 | Cup-oven Light |
|
- | |||||
| 29 | 316116400 | Receptacle - Bulb (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 30 | 40A15 | Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 31 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 32 | 5303205904 | Retainer |
|
$ 7.67 | |||||
| 33 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 34 | 316042103 | Front - Oven |
|
- | |||||
| 35 | 3051656 | Bracket, Vent Tube |
|
- | |||||
| 36 | 5303207389 | Bracket, Top |
|
- | |||||
| 37 | 3051666 | Gasket-vent Tube |
|
- | |||||
| *69093 | 3203574 | Plate-conduit Mtg |
|
- | |||||
| *69093 | 19100210094 | Wiring Diagram (not For Purchase) |
|
- | |||||
| *69093 | 3205257 | Channel, Sub Top |
|
- | |||||
| 32A | 3934063 | Anti-tip Kit, (non-illustrated) |
|
- | |||||
| 32B | 5303284616 | Clip - Capillary (2) (non-illustrated) |
|
$ 9.86 | |||||
| 5A | 5308012530 | Panel-side Lh-almd |
|
- | |||||
| 8A | 3017482 | Gusset-rear, Lh |
|
- |
