New Model Search:

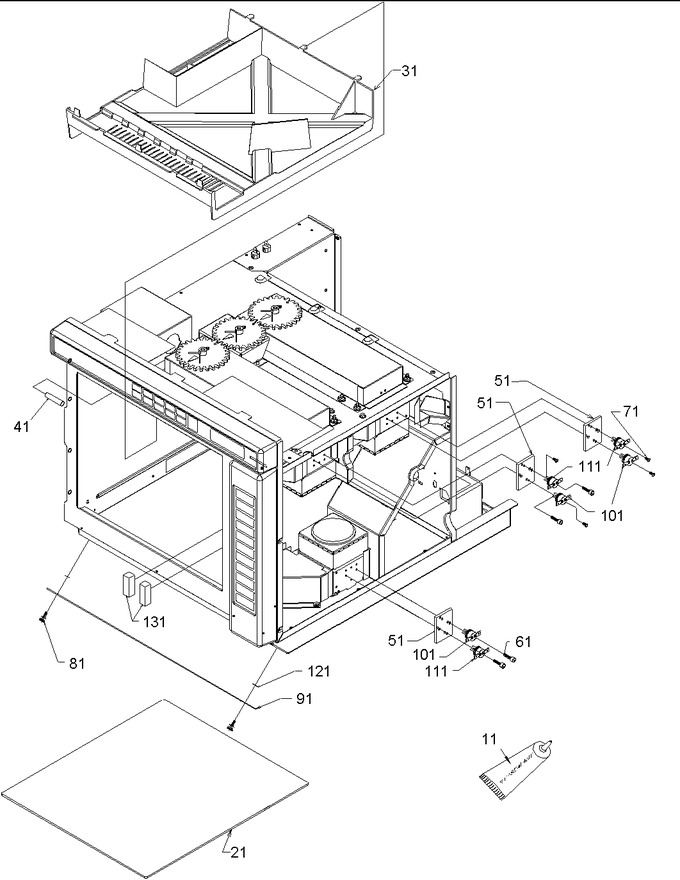

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | W10841140 | Sealer (Replaces: M0275598) |
|
Immediately | $ 24.92 | ||||
| 21 | R0156942 | Tray-ceramic Floor W/sealer |
|
$ 184.87 | |||||
| 31 | 10766601 | Shield, Grease |
|
- | |||||
| 41 | M0308801 | Cap, Protective-threaded (red) |
|
- | |||||
| 51 | B8380601 | Plate, Thermal Cutout |
|
- | |||||
| 61 | M0229916 | Screw T.c |
|
- | |||||
| 71 | M0232012 | Screw |
|
- | |||||
| 81 | M0209701 | Screw, Decorative |
|
- | |||||
| 91 | 10853102 | Grille, Air Inlet |
|
- | |||||
| 101 | B5684106 | Thermal Protector |
|
- | |||||
| 111 | B5684118 | Cutout, Thermal |
|
- | |||||
| 121 | M0274066 | Washer, Nylon |
|
- | |||||
| 131 | 3010003001 | Support-tray |
|
- |
