01 - Chassis


02 - Chassis


03 - Chassis


04 - Controls


05 - Door/blower


06 - Electrical Components


07 - Magnetron/light


08 - Outercase

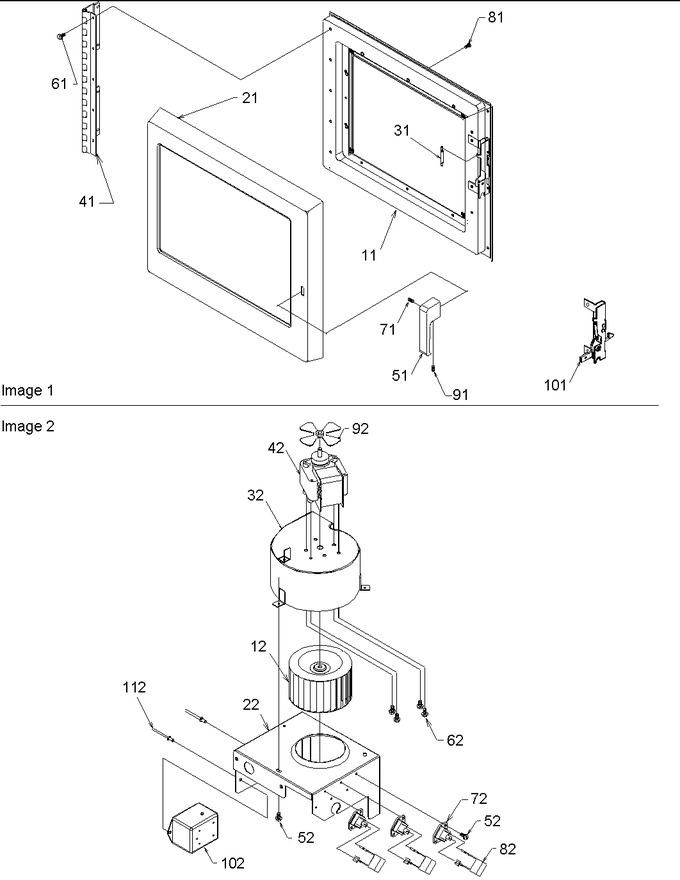

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	R0156921		Inner Door & Glass Assy		Appelez-nous	-
12	C3670809		Wheel, Blower				$ 33.54
21	R0156918		Outer Door/lens Retainer Assy				$ 328.06
22	10984008		Bracket, Blower Scroll		Appelez-nous	-
31	C8893502		Spring, Door Latch		Appelez-nous	-
32	10797202		Weld, Scroll		Appelez-nous	-
41	C8961811		Hinge-door		Appelez-nous	-
42	10773303		Motor- Blower		Appelez-nous	-
51	12490901		Handle, Door		Appelez-nous	-
52	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
61	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
62	M0253916		Screw		Appelez-nous	-
71	5051032202		Set Screw No.10 X .25		Appelez-nous	-
72	D7681501		Triac				$ 44.05
81	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.02
82	10172901Q		Snubber Assembly		Appelez-nous	-
91	M0208342		Screw, Set		Appelez-nous	-
92	B5706704		Fan Blade				$ 8.23
101	12002757		Latch Kit   (Replaces: R0000282)				$ 116.60
102	10976702		Filter, Line		Appelez-nous	-
112	A4539618		.156 Pop Rivet		Appelez-nous	-
