View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

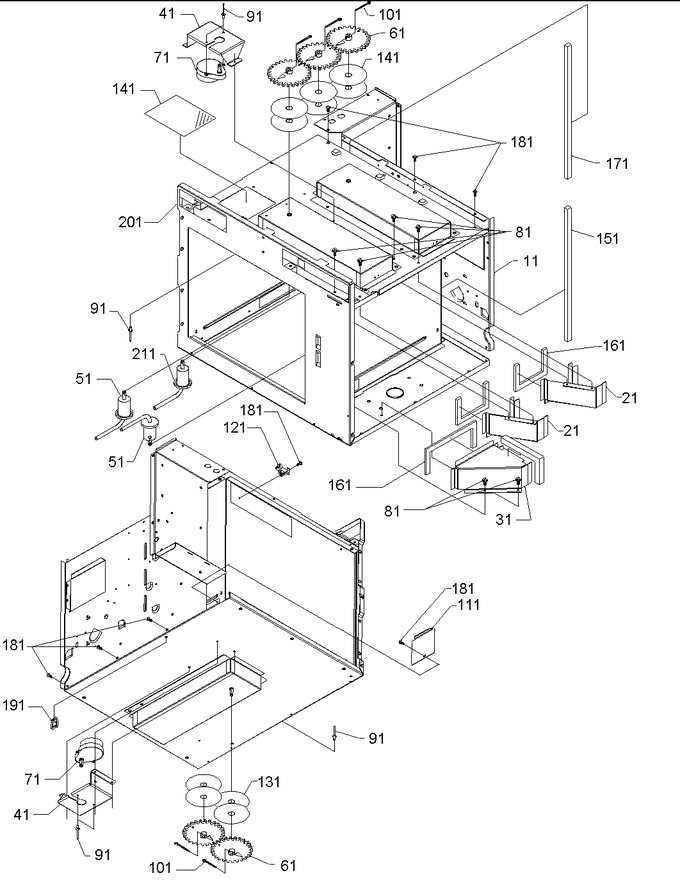

01 - Chassis
02 - Chassis
03 - Chassis
04 - Controls
05 - Door/blower
06 - Electrical Components
07 - Magnetron/light
08 - Outercase
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10768304 | Panel-partition |
|
- | |||||
| 21 | 10781702 | Duct-top Exhaust |
|
- | |||||
| 31 | 10781801 | Duct, Bottom Exh |
|
- | |||||
| 41 | 10782202 | Brkt-motor Mtg |
|
- | |||||
| 51 | 10787601 | Assy, Antenna (plain Tip) |
|
- | |||||
| 61 | 10788401 | Gear, Spur |
|
- | |||||
| 71 | R0150102 | Motor-antenna |
|
- | |||||
| 81 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 91 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 101 | M1200005 | Pin, Cotter |
|
- | |||||
| 111 | 10847601 | Plate, Partition |
|
- | |||||
| 121 | B5795306 | Thermal Cutout |
|
- | |||||
| 131 | 10903002 | Washer, Spur Gear |
|
$ 5.44 | |||||
| 141 | B8367702 | Window, Oven Light |
|
- | |||||
| 151 | A3030311 | Gasket-per Inch |
|
- | |||||
| 161 | A3030330 | Gasket,per Ft |
|
- | |||||
| 171 | 10966601 | Gasket, Neoprene |
|
- | |||||
| 181 | WP488234 | Screw (Replaces: M0234422) |
|
$ 6.07 | |||||
| 191 | B5667304 | Wire Clip |
|
- | |||||
| 201 | R0000108 | Kit, Cavity-3 Tube |
|
- | |||||
| 211 | 10787602 | Assy, Antenna (blue Tip) |
|
- |
