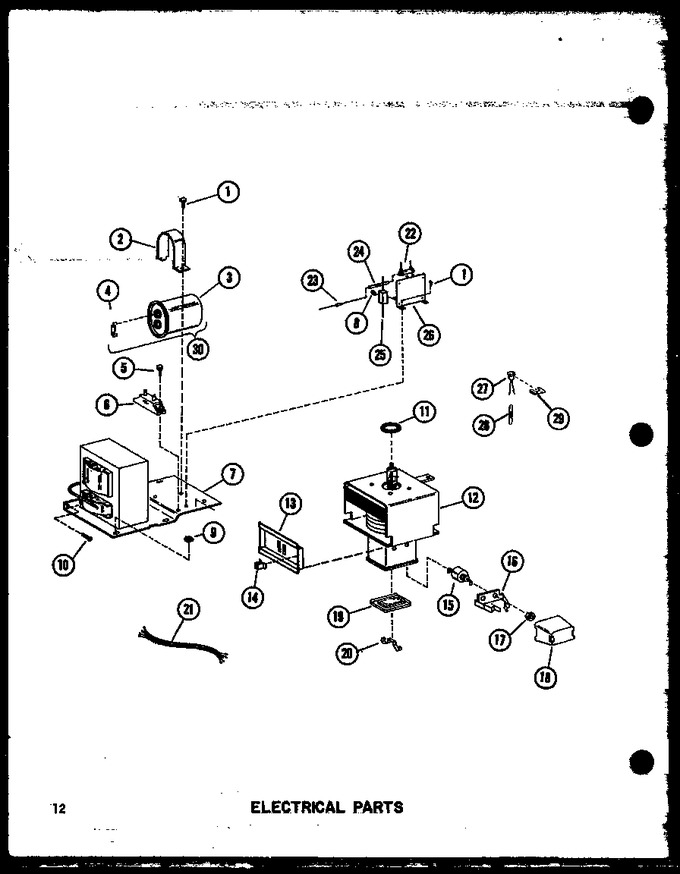

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0218116 | Screw |
|
- | |||||
| 2 | A3197101 | Strap-capacitor A |
|
- | |||||
| 3 | C3679502 | Capacitor Assy |
|
- | |||||
| 4 | M0305202 | Resistor A |
|
- | |||||
| 5 | M0216517 | Screw |
|
- | |||||
| 6 | 11QBP0235 | Kit, Diode (Replaces: B5685801) |
|
$ 15.33 | |||||
| 7 | D7242101 | Transformer |
|
- | |||||
| 8 | M0325301 | Insulator, Term. K |
|
- | |||||
| 8 | M0325501 | Insulator, Pod K |
|
- | |||||
| 9 | WP487939 | Nut (Replaces: M0282015) |
|
$ 6.95 | |||||
| 10 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 11 | A3185102 | Gasket, Magnetron |
|
- | |||||
| 12 | D7157003 | Magnetron Kit,700w |
|
- | |||||
| 13 | B5679101 | Baffle |
|
- | |||||
| 14 | M0113504 | Clip K |
|
- | |||||
| 15 | A3148801 | Capacitor K |
|
- | |||||
| 16 | B5655902 | Clip K |
|
- | |||||
| 17 | M0281901 | Hex Nut |
|
- | |||||
| 18 | B5656001 | Shield Hv K |
|
- | |||||
| 19 | B5647901 | Cover Cap Box K |
|
- | |||||
| 20 | A3145401 | Bale Strap K |
|
- | |||||
| 21 | D7284801 | Wiring Harness |
|
- | |||||
| 22 | M0305009 | Resistor A |
|
- | |||||
| 23 | M0308102 | Fuse |
|
- | |||||
| 24 | M0321701 | Sleeve |
|
- | |||||
| 25 | M0305204 | Resistor |
|
- | |||||
| 26 | B5687402 | Terminal Board |
|
- | |||||
| 27 | M0370403 | Thermal Prot |
|
- | |||||
| 28 | WP75614 | Connector A-k (Replaces: A0304502) |
|
$ 44.41 | |||||
| 29 | M0115802 | Clip |
|
- | |||||
| 30 | R0160002 | Capacitor Assy |
|
- | |||||
| NI | M0325301 | Insulator, Term. K |
|
- | |||||
| NI | C3655809 | Jumper Wire |
|
- | |||||
| NI | C3655807 | Jumper Wire |
|
- | |||||
| NI | M0325501 | Insulator, Pod K |
|
- | |||||
| NI | C3655835 | Jumper Wire K |
|
- | |||||
| NI | C3655822 | Jumper Wire |
|
- |
