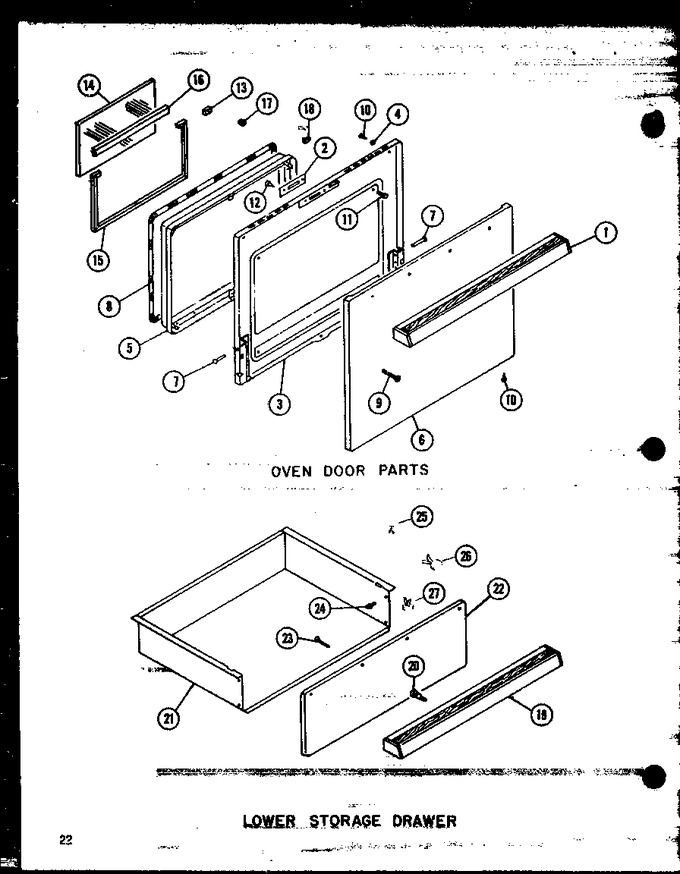

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0179044		Handle-door/drawer		Appelez-nous	-
2	R0178835		Plate, Door Latch		Appelez-nous	-
3	R0178836		Backer-oven Door		Appelez-nous	-
4	R0190023		Washer		Appelez-nous	-
5	R0178837		Sub Backer-ov Dr		Appelez-nous	-
6	R0178872		Oven Door Panel-w		Appelez-nous	-
6	R0178838		Oven Door Pnl., Black Glass		Appelez-nous	-
6	R0178896		Oven Panel-dc		Appelez-nous	-
6	R0178897		Oven Panel-g		Appelez-nous	-
6	R0178898		Oven Panel-al		Appelez-nous	-
6	R0178899		Oven Panel-av		Appelez-nous	-
7	R0191052		Rivet		Appelez-nous	-
8	R0182046		Dr. Gasket		Appelez-nous	-
9	M0202535		Screw		Appelez-nous	-
10	R0187008		Screw, Motor Mount		Appelez-nous	-
11	R0187009		Screw, Sub-backer		Appelez-nous	-
12	R0187010		Screw-latch Plate		Appelez-nous	-
13	R0178924		Spacer-handle		Appelez-nous	-
14	R0183042		Black Glass Panel		Appelez-nous	-
15	R0178840		Trim, Frame		Appelez-nous	-
16	R0178841		Trim, Handle		Appelez-nous	-
17	WP486255		Nut Keps K   (Replaces: M0281003)				$ 5.54
18	R0191053		Speed Clip		Appelez-nous	-
19	R0179044		Handle-door/drawer		Appelez-nous	-
20	R0178924		Spacer-handle		Appelez-nous	-
21	R0178842		Skirt Assy		Appelez-nous	-
22	R0178910		Drawer Panel-g		Appelez-nous	-
22	R0178912		Drawer Panel-av		Appelez-nous	-
22	R0178911		Drawer Panel-al		Appelez-nous	-
22	R0178843		Drawer Panel-w		Appelez-nous	-
22	R0178909		Drawer Panel-dc		Appelez-nous	-
23	M0202535		Screw		Appelez-nous	-
24	R0187012		Screw-drawer Panel		Appelez-nous	-
25	R0181077		Plastic Spacer, Top		Appelez-nous	-
26	R0182047		Rubber Bumper		Appelez-nous	-
27	R0181078		Plastic Glider		Appelez-nous	-
