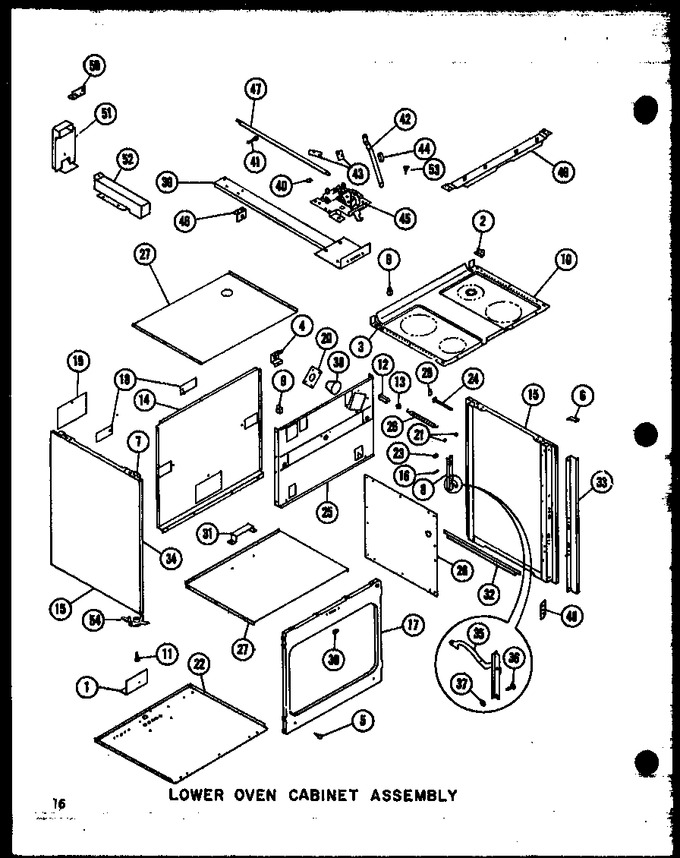

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0178750 | Angle, Terminal Block |
|
- | |||||
| 4 | R0191040 | Bracket-light Socket |
|
- | |||||
| 5 | R0182043 | Bumper-drawer |
|
- | |||||
| 6 | R0178751 | Trim, Cap, R.h. |
|
- | |||||
| 7 | R0178752 | Trim, Cap, L.h. |
|
- | |||||
| 8 | R0179016 | Channel, Hinge Adjustment |
|
- | |||||
| 9 | R0191041 | Clip, Wire Cable |
|
- | |||||
| 10 | R0178753 | Drip Baffle-w |
|
- | |||||
| 11 | R0183035 | Leg, Leveling |
|
- | |||||
| 12 | R0178757 | Link Oven Door Spring |
|
- | |||||
| 13 | R0189015 | Nut, Square No.10-32 |
|
- | |||||
| 14 | R0178758 | Oven Back Panel |
|
- | |||||
| 15 | R0178906 | Side Panel Kit - Gold |
|
- | |||||
| 15 | R0178905 | Side Panel Kit - Dark Copper |
|
- | |||||
| 15 | R0178907 | Main End-al |
|
- | |||||
| 15 | R0178908 | Main End-av |
|
- | |||||
| 15 | R0178759 | Main End-w |
|
- | |||||
| 16 | R0191042 | Roller Pin |
|
- | |||||
| 17 | R0178763 | Front Frame |
|
- | |||||
| 18 | R0178764 | Access Plate, Spring Adjust. |
|
- | |||||
| 19 | R0178765 | Plate, Access |
|
- | |||||
| 20 | R0191043 | Mtg Bracket-light |
|
- | |||||
| 21 | R0183036 | Plug Button Guide |
|
- | |||||
| 22 | R0178766 | Retainer, Insulation Bottom |
|
- | |||||
| 23 | R0183037 | Roller, Nylon |
|
- | |||||
| 24 | R0188019 | Screw |
|
- | |||||
| 25 | R0178767 | Insulation Retainer, Back |
|
- | |||||
| 26 | R0178768 | Shield Slide |
|
- | |||||
| 27 | R0178769 | Heat Shield |
|
- | |||||
| 28 | R0178770 | Spring, Oven Door |
|
- | |||||
| 29 | R0178771 | Stop, Spring |
|
- | |||||
| 30 | R0190023 | Washer |
|
- | |||||
| 31 | R0178772 | Supt-oven Shell |
|
- | |||||
| 32 | R0176008 | Storage Drawer Track Lh |
|
- | |||||
| 32 | R0176007 | Track-rh-drawer |
|
- | |||||
| 33 | R0178773 | Front Trim-rh |
|
- | |||||
| 34 | R0178774 | Front Trim-lh |
|
- | |||||
| 35 | R0179017 | Hinge Blade-rh |
|
- | |||||
| 35 | R0179018 | Hinge Blade-lh |
|
- | |||||
| 36 | R0191044 | Rivet |
|
- | |||||
| 37 | R0191045 | Clip, Push-on |
|
- | |||||
| 38 | R0178775 | Retainer |
|
- | |||||
| 39 | R0178776 | Latch Mtg Channel |
|
- | |||||
| 40 | R0178777 | Retainer Ring |
|
- | |||||
| 41 | R0191046 | Cotter Pin |
|
- | |||||
| 42 | R0179020 | Latch Arm Black |
|
- | |||||
| 43 | R0196021 | Insulation |
|
- | |||||
| 44 | R0181070 | Knob-door Latch |
|
- | |||||
| 45 | R0179021 | Latch Assy |
|
- | |||||
| 46 | R0179022 | Supt-latch Channel |
|
- | |||||
| 47 | R0179023 | Rod-latch Release |
|
- | |||||
| 48 | R0178778 | Spacer-drawer |
|
- | |||||
| 49 | R0178779 | Element Support Channel |
|
- | |||||
| 50 | R0178780 | Flueway Supt |
|
- | |||||
| 51 | R0178781 | Vertical Flueway |
|
- | |||||
| 52 | R0178782 | Horiz Flueway |
|
- | |||||
| 53 | M0230814 | Screw |
|
- | |||||
| 54 | R0178874 | Retainer Nut |
|
- |
