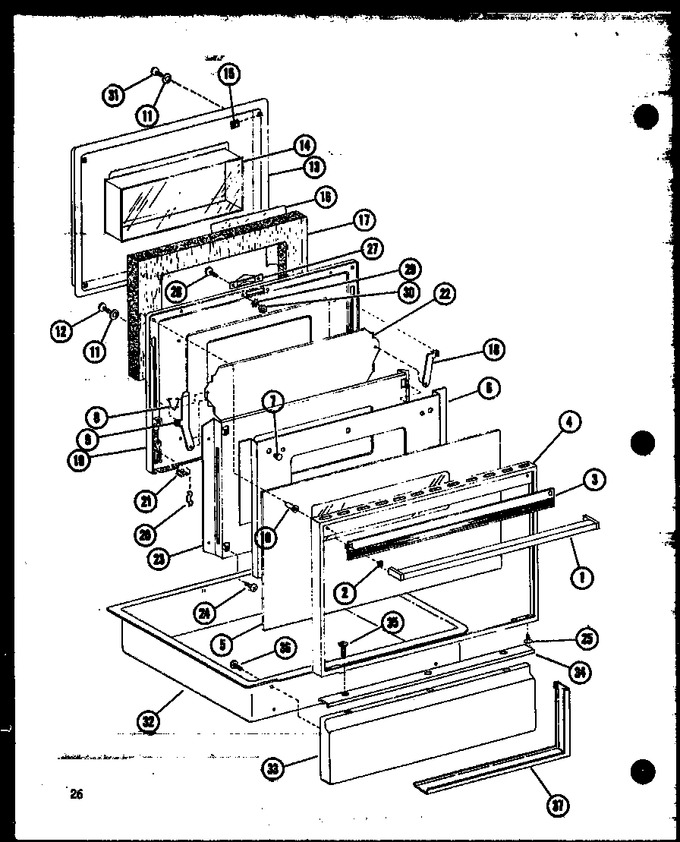

RCR-5 (BOM: P8531901S) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	D8535901	Handle, Oven Door	Appelez-nous	-
2	A4406401	Pad	Appelez-nous	-
3	D8507801	Trim Ext	Appelez-nous	-
4	D8507701	Door Frame (chrome)	Appelez-nous	-
5	D8507901	Panel	Appelez-nous	-
6	D8507601	Heat Shield	Appelez-nous	-
7	A4406501	Bumper-glass	Appelez-nous	-
8	C2705101	Spring-shutter	Appelez-nous	-
9	B5003801	Arm-shutter Lh	Appelez-nous	-
10	A4406301	Spacer	Appelez-nous	-
11	M0271201	Washer, Padder	Appelez-nous	-
12	M0203051	Screw	Appelez-nous	-
13	D8507101	Door Plug Weld	Appelez-nous	-
14	D8507301	Window	Appelez-nous	-
15	A4407601	Speed Nut	Appelez-nous	-
16	A4406601	Foil-door Plug	Appelez-nous	-
17	B5001101	Insulation, Door Plug	Appelez-nous	-
18	B5003901	Arm-shutter Rh	Appelez-nous	-
19	D8506901	Inner Panel	Appelez-nous	-
20	A4407701	Spring	Appelez-nous	-
21	M0119601	Clip-speed Nut	Appelez-nous	-
22	D8507501	Shutter	Appelez-nous	-
23	D8507401	Heat Shield	Appelez-nous	-
24	67006425	Screw-sm No.8-1/2lg (Replaces: M0211017)		Immediately	$ 6.26
25	W11233072	Use M0214931 (Replaces: M0211531)		Immediately	$ 12.62
27	B5003601	Latch Plate Assy	Appelez-nous	-
28	M0203218	Screw	Appelez-nous	-
29	M0272803	Lock Washer	Appelez-nous	-
30	WP486255	Nut Keps K (Replaces: M0281003)			$ 5.54
31	W11233072	Use M0214931 (Replaces: M0211531)		Immediately	$ 12.62
32	C2713901	Drawer Pan	Appelez-nous	-
33	C2713705	Weldment, Drawer Front, Almond	Appelez-nous	-
33	C2713704	Wld Drawer-g K	Appelez-nous	-
33	C2713801	Drawer Wld Blk K	Appelez-nous	-
33	C2713701	Weldment, Drawer Front, White	Appelez-nous	-
33	C2713702	Wld Drawer-c K	Appelez-nous	-
33	C2713703	Weldment, Drawer Front, Avocad	Appelez-nous	-
34	D8514301	Handle, Drawer	Appelez-nous	-
35	M0214528	Screw	Appelez-nous	-
36	WP90767	Screw, Sm (Replaces: M0211016)		Immediately	$ 7.04
