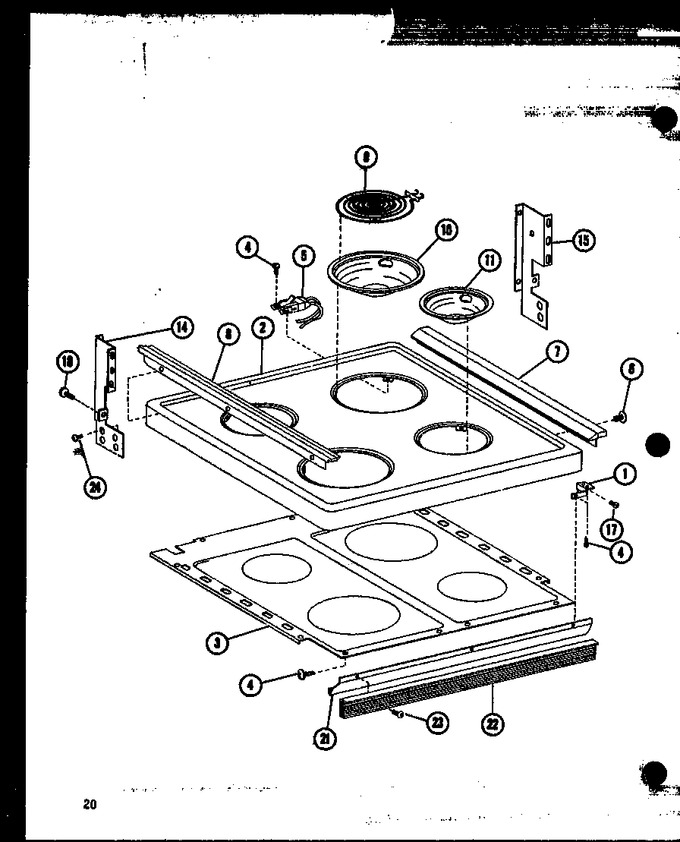

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C2709002		Brkt-front Lh		Appelez-nous	-
1	C2709001		Brkt-front		Appelez-nous	-
2	D8520104		Range Top		Appelez-nous	-
2	D8520102		Top-range C		Appelez-nous	-
2	D8520103		Top-range A		Appelez-nous	-
2	D8520101		Top-range W		Appelez-nous	-
2	D8520105		Range Top (alm)		Appelez-nous	-
3	D8520202		Drip Pan		Appelez-nous	-
4	M0228030		Screw K		Appelez-nous	-
5	330031		Kit, Top Element Term Block   (Replaces: R0157526)			Immediately	$ 14.48
6	M0228015		Screw		Appelez-nous	-
7	D8532901		Trim		Appelez-nous	-
8	D8532902		Trim		Appelez-nous	-
9	WP3191454		Element, 5 Turn (2100w) 8``   (Replaces: D8519701)				$ 163.63
9	WPW10259868		Element, 4 Turn (1500w) 6``   (Replaces: D8519801)			Immediately	$ 112.28
10	WPW10196405		Bowl, Burner 8`` (chrome)   (Replaces: C2715901)			Immediately	$ 15.56
10	WPW10196405		Bowl, Burner 8`` (chrome)   (Replaces: C2710601)			Immediately	$ 15.56
11	WPW10196406		Bowl, Drip (6`` W/hole-chr)   (Replaces: C2710301)			Immediately	$ 12.05
14	A4416101		Bracket-top		Appelez-nous	-
15	A4416102		Bracket-top		Appelez-nous	-
17	M0213931		Screw		Appelez-nous	-
18	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.04
21	C2706101		Guard		Appelez-nous	-
22	D8509401		Grille, Front		Appelez-nous	-
23	M0217616		Screw		Appelez-nous	-
24	WP4312464		Screw   (Replaces: M0211029)				$ 6.26
