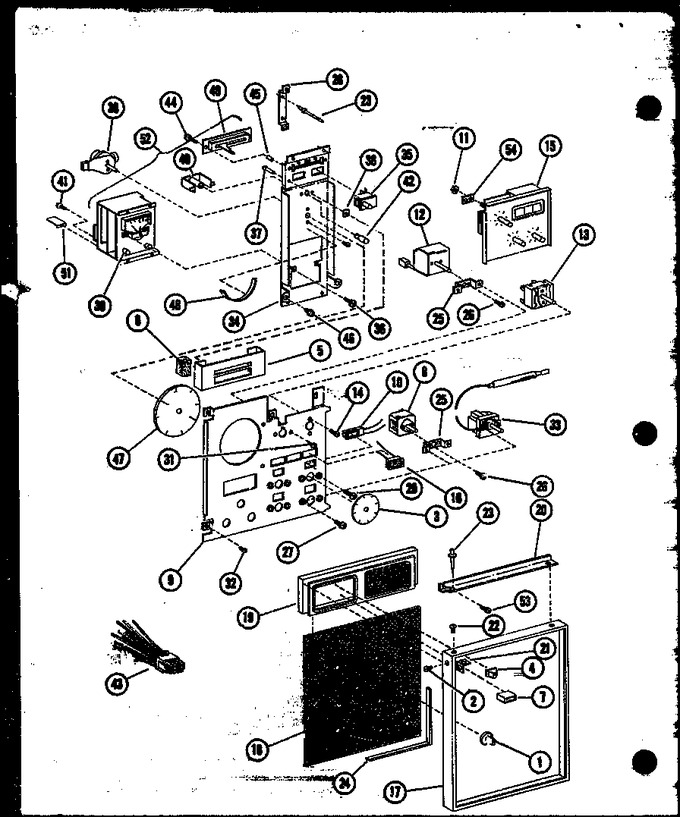

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5005101		Knob, Dual Timer		Appelez-nous	-
1	C8735901		Knob		Appelez-nous	-
1	C2706201		Knob K		Appelez-nous	-
2	WP8281236		Screw (counter Sunk)   (Replaces: M0215704)				$ 6.80
3	D8532301		Disc-surf/oven		Appelez-nous	-
3	D8532303		Disc-surf/oven		Appelez-nous	-
3	D8532302		Disc-surf/oven		Appelez-nous	-
3	D8532304		Disc-surf/oven		Appelez-nous	-
4	B5742501		Knob-control		Appelez-nous	-
5	B5012001		Mtg Plate		Appelez-nous	-
6	A3030303		Gasket (per Foot)		Appelez-nous	-
7	C2715202		Button-push		Appelez-nous	-
7	C2715201		Button-push		Appelez-nous	-
8	C2702705		Switch, Infinite		Appelez-nous	-
9	D8531001		Panel, Control Mtg.		Appelez-nous	-
10	R0157517		Light Ind Kit		Appelez-nous	-
11	M0282402		Usr 0041847		Appelez-nous	-
12	D8534601		Thermostat, Oven		Appelez-nous	-
13	B5005001		Switch		Appelez-nous	-
14	M0200414		Screw		Appelez-nous	-
15	B8532701		Clock Timer		Appelez-nous	-
16	B5009709		Indicator-oven		Appelez-nous	-
16	B5009707		Indicator Light		Appelez-nous	-
16	B5009708		Indicator Light		Appelez-nous	-
17	D8526301		Trim-control Pnl		Appelez-nous	-
18	D8529201		Glass-control Pnl		Appelez-nous	-
19	C2717501		Clock-esc Assy		Appelez-nous	-
20	B5013901		Shield		Appelez-nous	-
21	A3251801		Angle-frame A		Appelez-nous	-
22	WP8281236		Screw (counter Sunk)   (Replaces: M0215704)				$ 6.80
23	A4539601		Pop Rivet		Appelez-nous	-
24	A3030339		Gasket, Foam		Appelez-nous	-
25	A4404801		Brkt-mtg		Appelez-nous	-
26	M0202527		Screw		Appelez-nous	-
27	M0217616		Screw		Appelez-nous	-
28	A4416401		Brkt-control Pnl		Appelez-nous	-
29	M0217616		Screw		Appelez-nous	-
30	A3284601		Sleeve		Appelez-nous	-
31	M0217615		Screw		Appelez-nous	-
32	M0217628		Screw		Appelez-nous	-
33	D8503902		Temp-assure-cnt-kit		Appelez-nous	-
34	D7360101		Mtg Plate		Appelez-nous	-
35	B5674703		Switch		Appelez-nous	-
36	M0202528		Screw		Appelez-nous	-
37	M0260002		Rivet		Appelez-nous	-
38	M0287603		Speed Nut		Appelez-nous	-
39	C8730603		Timer-35 Min		Appelez-nous	-
40	B5781101		Lamp Socket		Appelez-nous	-
41	M0213815		Screw		Appelez-nous	-
42	A3171201		Bulb		Appelez-nous	-
43	C8823201		Wire Harness		Appelez-nous	-
44	M0227525		Screw A-k		Appelez-nous	-
45	M0800201		Spacer		Appelez-nous	-
46	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
47	C2716601		Disc-timer		Appelez-nous	-
48	A3297501		Light Shield		Appelez-nous	-
49	B5786001		Slide Control, Cookmatic		Appelez-nous	-
51	A1009101		Insulation Board		Appelez-nous	-
52	C8809901		Control Mod Assy		Appelez-nous	-
53	M0254518		Screw		Appelez-nous	-
54	A4414601		Tab-clock Mtg		Appelez-nous	-
