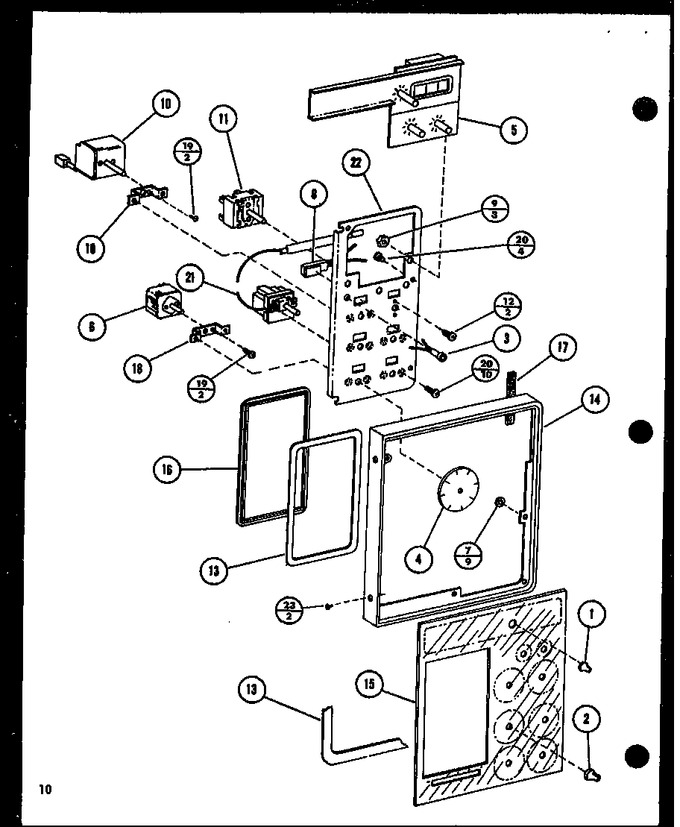

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5005101		Knob, Dual Timer		Appelez-nous	-
2	C2734701		Knob K		Appelez-nous	-
3	R0157517		Light Ind Kit		Appelez-nous	-
4	C2732506		Disk		Appelez-nous	-
4	C2732507		Disk		Appelez-nous	-
4	C2732502		Control, Disc Assembly, Propor		Appelez-nous	-
5	D8553103		Timer, Clock		Appelez-nous	-
6	C2702711		Switch, Infinite		Appelez-nous	-
7	M0270403		Stud Reciever		Appelez-nous	-
8	R0157517		Light Ind Kit		Appelez-nous	-
8	D8568202		Cont Wire Harness		Appelez-nous	-
9	M0282402		Usr 0041847		Appelez-nous	-
10	R0199311		Oven Thermostat Kit		Appelez-nous	-
11	R0199309		Oven Selector Sw Kit		Appelez-nous	-
12	M0200414		Screw		Appelez-nous	-
13	M0275034		Tape Per Roll		Appelez-nous	-
14	D8550702		Escutchen		Appelez-nous	-
15	C2732803		Lens-assy		Appelez-nous	-
16	D8554201		Gasket, Lens		Appelez-nous	-
17	A3030339		Gasket, Foam		Appelez-nous	-
18	A4404801		Brkt-mtg		Appelez-nous	-
19	W11214483		Screw, Mach   (Replaces: M0202321)				$ 12.62
20	M0232702		Screw		Appelez-nous	-
22	D8552802		Control Plate Pnt		Appelez-nous	-
23	WP8281236		Screw (counter Sunk)   (Replaces: M0215704)				$ 6.80

    View Diagram in Separate Window       Print Part List
