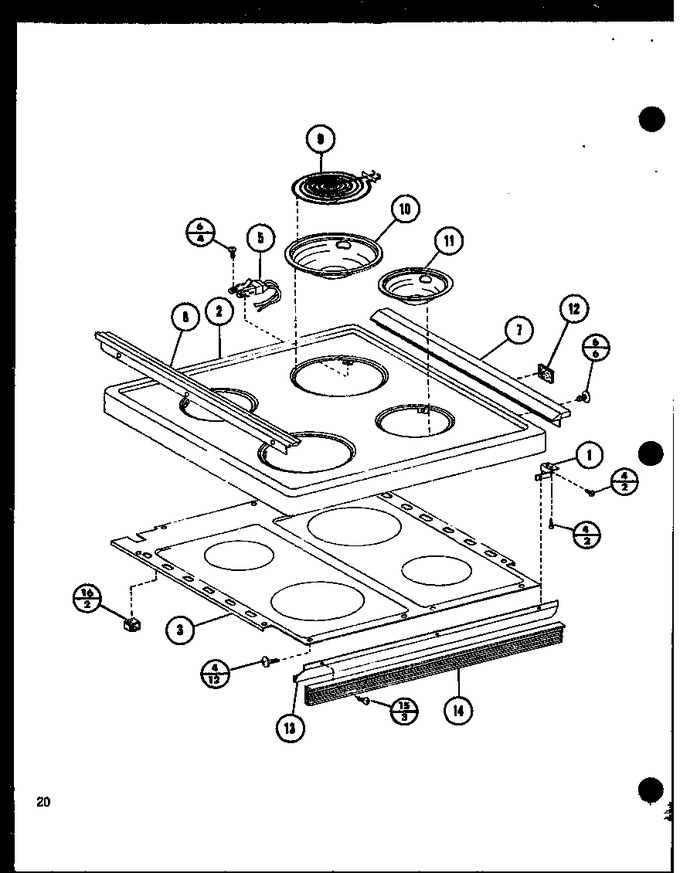

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C2709001		Brkt-front		Appelez-nous	-
1	C2709002		Brkt-front Lh		Appelez-nous	-
2	D8520108		Range Top (alm)		Appelez-nous	-
2	D8520107		Range Top (bsq)		Appelez-nous	-
2	D8520109		Range Top (gold)		Appelez-nous	-
2	D8520110		Range Top (alm)		Appelez-nous	-
2	D8520106		Range Top (wht)		Appelez-nous	-
3	D8520203		Drip Pan		Appelez-nous	-
4	M0217224		Screw		Appelez-nous	-
5	330031		Kit, Top Element Term Block   (Replaces: YC2711501)			Immediately	$ 14.48
6	M0232702		Screw		Appelez-nous	-
7	D8532903		Trim		Appelez-nous	-
8	D8532904		Trim		Appelez-nous	-
9	WPW10259868		Element, 4 Turn (1500w) 6``   (Replaces: D8549401)			Immediately	$ 112.28
9	WP3191454		Element, 5 Turn (2100w) 8``   (Replaces: D8549501)				$ 163.63
10	WPW10196406		Bowl, Drip (6`` W/hole-chr)   (Replaces: C2710302)			Immediately	$ 12.05
11	WPW10196405		Bowl, Burner 8`` (chrome)   (Replaces: C2715901)			Immediately	$ 15.56
12	B5718912		Gasket		Appelez-nous	-
13	C2706101		Guard		Appelez-nous	-
14	D8509402		Grille		Appelez-nous	-
15	M0254518		Screw		Appelez-nous	-
16	M0110503		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
