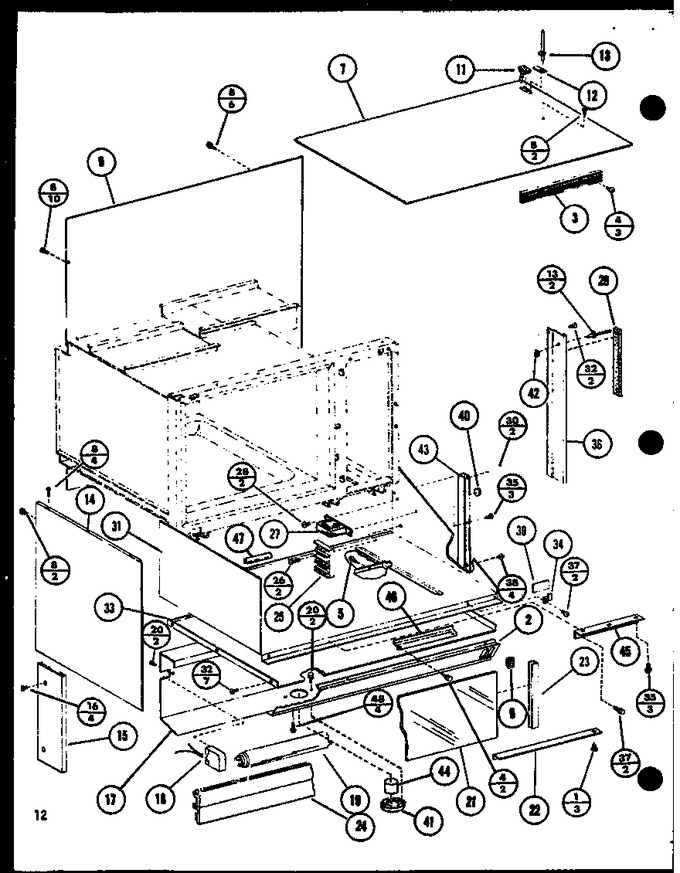

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0217204 | Screw |
|
- | |||||
| 2 | D8531104 | Panel Light Switch |
|
- | |||||
| 3 | C2726101 | Grille |
|
- | |||||
| 4 | M0254518 | Screw |
|
- | |||||
| 5 | M0211532 | Screw |
|
- | |||||
| 6 | B5009903 | Switch-oven Light |
|
- | |||||
| 7 | D8530105 | Top Cover L |
|
- | |||||
| 7 | D8530102 | Upper Cover C |
|
- | |||||
| 7 | D8530104 | Top Cover G |
|
- | |||||
| 7 | D8530103 | Top Cover A |
|
- | |||||
| 7 | D8530106 | Top Cover-w- |
|
- | |||||
| 8 | M0217224 | Screw |
|
- | |||||
| 9 | D8530602 | Panel, Upper Rear |
|
- | |||||
| 11 | A4416701 | Receptacle |
|
- | |||||
| 12 | A4430101 | Cover |
|
- | |||||
| 13 | A4539601 | Pop Rivet |
|
- | |||||
| 14 | D8530406 | Side Panel |
|
- | |||||
| 14 | D8530502 | Side Pnl Lh C |
|
- | |||||
| 14 | D8530403 | Side Pnl A |
|
- | |||||
| 14 | D8530503 | Side Pnl A |
|
- | |||||
| 14 | D8530404 | Side Pnl Rh-g |
|
- | |||||
| 14 | D8530504 | Side Pnl G |
|
- | |||||
| 14 | D8530402 | Side Pnl Rh C |
|
- | |||||
| 14 | D8530405 | Side Pnl Rh L |
|
- | |||||
| 14 | D8530506 | Side Panel-w |
|
- | |||||
| 15 | C2715704 | Trim Post L.h |
|
- | |||||
| 15 | C2715703 | Trim Post R.h |
|
- | |||||
| 16 | M0230630 | Screw |
|
- | |||||
| 17 | D8529304 | Reflector Plt Pnt |
|
- | |||||
| 18 | C2722711 | Socket |
|
- | |||||
| 18 | C2722712 | Socket |
|
- | |||||
| 19 | WP95292 | Lamp, Fluorescent (Replaces: M0360302) |
|
Immediately | $ 121.45 | ||||
| 20 | M0201414 | Screw |
|
- | |||||
| 21 | D8531604 | Glass-splash |
|
- | |||||
| 22 | D8532502 | Angle Ptd |
|
- | |||||
| 23 | B5013201 | Trim-lower Glass |
|
- | |||||
| 24 | D8533202 | Escut Back Splash |
|
- | |||||
| 25 | B5014101 | Terminal Block |
|
- | |||||
| 26 | M0234426 | Screw |
|
- | |||||
| 27 | B5005901 | Ballast |
|
- | |||||
| 28 | WP488234 | Screw (Replaces: M0234422) |
|
$ 6.07 | |||||
| 29 | A3030309 | Gasket (per Foot) |
|
- | |||||
| 30 | M0217204 | Screw |
|
- | |||||
| 31 | D8531503 | Base Frame Weld |
|
- | |||||
| 32 | WP59002061 | Screw (Replaces: M0234404) |
|
$ 6.98 | |||||
| 33 | D8531705 | Filter Pan Weld-pntd |
|
- | |||||
| 34 | A4414001 | Brkt-module Mtg |
|
- | |||||
| 35 | M0232723 | Screw |
|
- | |||||
| 36 | D8529804 | Trim-lh |
|
- | |||||
| 37 | M0213145 | Screw |
|
- | |||||
| 38 | M0110503 | Clip |
|
- | |||||
| 39 | B5738501 | Seal K |
|
- | |||||
| 40 | A1511501 | Bumper |
|
- | |||||
| 41 | B8336801 | Pad Starter |
|
- | |||||
| 42 | M0293201 | Bracket |
|
- | |||||
| 43 | D8528705 | Ext Corner Post |
|
- | |||||
| 43 | D8528706 | Extension Crn Post |
|
- | |||||
| 44 | A1028001 | Starter, Flourescent |
|
- | |||||
| 45 | A4428901 | Angle Yoke |
|
- | |||||
| 46 | A4424402 | Shield, Vision |
|
- | |||||
| 47 | M0293001 | Edge Liner-ft |
|
- | |||||
| 48 | WP59002061 | Screw (Replaces: M0234404) |
|
$ 6.98 | |||||
| NI | A4429101 | Louver Screen |
|
- |
