SELECT A DIAGRAM

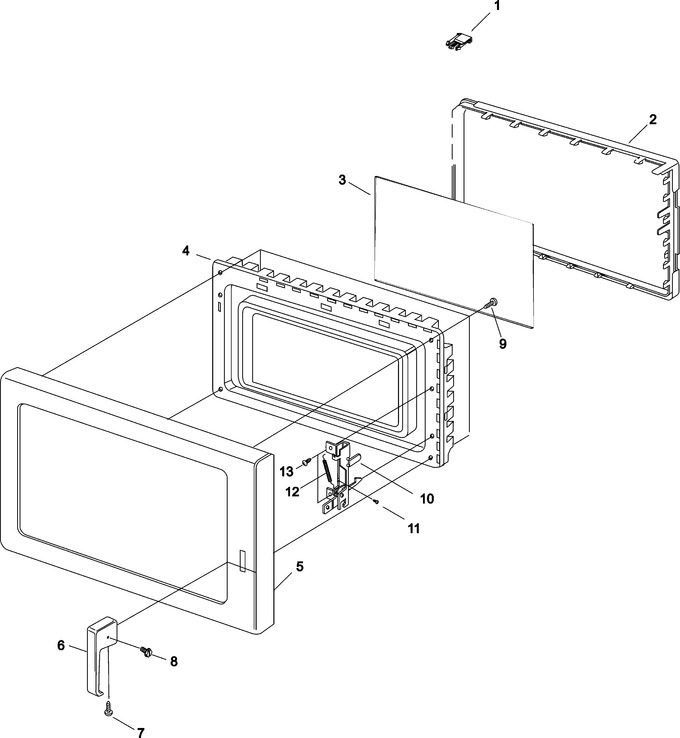

01 - Door


02 - Timer And Escutcheon


03 - Antenna, Tray, Outer Case,


04 - Electrical, Grease Shield, Ducts,


05 - Base And Filter


06 - Supplemental Information


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	53001543		Cap, Top Hinge		Appelez-nous	-
002	53001572		Choke Cover		Appelez-nous	-
002	53001608		Choke Cover		Appelez-nous	-
003	13066801		Window, Inner Door				$ 28.53
004	53001778		Inner Door Weldment		Appelez-nous	-
005	53001544		Assy, Outer Door (gry)		Appelez-nous	-
005	53001573		Assy, Outer Door (ss)		Appelez-nous	-
005	53001602		Assy, Outer Door (blk)		Appelez-nous	-
006	12002453		Handle Kit- W/screws & Loctite		Appelez-nous	-
007	53001546		Screw- Handle Bottom		Appelez-nous	-
008	53001547		Screw- Handle Side		Appelez-nous	-
009	R0654030		Screw, Pan Hd S/tap		Appelez-nous	-
010	53001779		Latch		Appelez-nous	-
011	R0654180		Screw, Pan Hd		Appelez-nous	-
012	53001780		Spring				$ 5.34
013	R0131246		Screw, Tapping Truss Head		Appelez-nous	-
