SELECT A DIAGRAM

01 - Door


02 - Timer And Escutcheon


03 - Antenna, Tray, Outer Case,


04 - Electrical, Grease Shield, Ducts,


05 - Base And Filter


06 - Supplemental Information


07 - Wiring Information

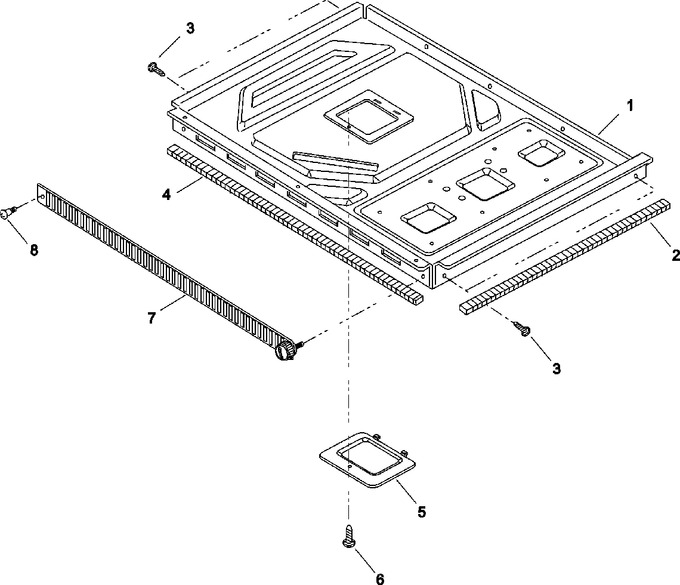

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	53001625		Base Plate- W/cover & Gaskets		Appelez-nous	-
002	53001626		Gasket, Base- Side		Appelez-nous	-
003	R0654036		Screw, Truss Hd S/tap		Appelez-nous	-
004	53001627		Gasket, Base- Front		Appelez-nous	-
005	53001628		Cover, Base		Appelez-nous	-
005	53001647		Base Plate		Appelez-nous	-
006	R0131246		Screw, Tapping Truss Head		Appelez-nous	-
007	53001571		Filter, Air- W/thumb Screw		Appelez-nous	-
008	53001629		Screw, Drawing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
