SELECT A DIAGRAM

01 - Door


02 - Timer And Escutcheon

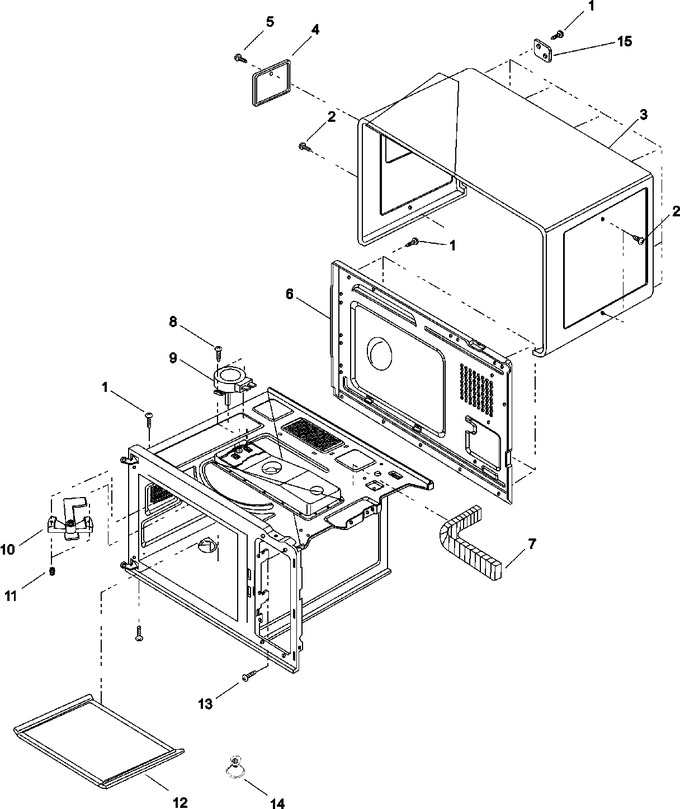

03 - Antenna, Tray, Outer Case,


04 - Electrical, Grease Shield, Ducts,


05 - Base And Filter


06 - Supplemental Information


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	R0654183		Screw, Truss Hd		Appelez-nous	-
002	R0654036		Screw, Truss Hd S/tap		Appelez-nous	-
003	53001549		Outer Case- Gray		Appelez-nous	-
003	53001577		Outer Case- Stainless		Appelez-nous	-
003	53001611		Outer Case- Black		Appelez-nous	-
004	53001550		Cover, Lamp- Gray		Appelez-nous	-
004	53001579		Cover, Lamp- Stainless		Appelez-nous	-
004	53001618		Cover, Lamp- Black		Appelez-nous	-
005	53001609		Screw Tapping, Counter Sunk Hd		Appelez-nous	-
006	53001551		Back Panel		Appelez-nous	-
007	53001610		Gasket		Appelez-nous	-
008	R0654180		Screw, Pan Hd		Appelez-nous	-
009	53001552		Motor- Antenna 120v 60hz		Appelez-nous	-
010	12002451		Antenna Kit- W/rivets		Appelez-nous	-
011	53001554		Rivet Assembly		Appelez-nous	-
012	53001555		Tray, Ceramic		Appelez-nous	-
013	R0131246		Screw, Tapping Truss Head		Appelez-nous	-
014	59001235		Suction Cup- For Tray Removal		Appelez-nous	-
015	53001619		Bracket, Stacking		Appelez-nous	-
