Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 308417 Support-oven Burner Appelez-nous -
2 305738 Igniter Bracket Appelez-nous -
3 102429 Screw 10 - 32 X 3/8`` Appelez-nous -
4 327617 Igniter Appelez-nous -
5 293034 Oven Burner Appelez-nous -
6 323455 Air Shutter Appelez-nous -
7 105771 Screw 10 - 32 X 1/4`` Appelez-nous -
8 279542 Tubing 3/8`` (shut-off Valve To Reg.) Appelez-nous -
9 322338 Orifice W/tubing Appelez-nous -
10 113384 Inverted Nut 3/8`` Appelez-nous -
11 114660 Bracket-control Valve Appelez-nous -
12 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16

13 313072 Control Valve Appelez-nous -
14 294375 Pressure Regulator Appelez-nous -
15 294391 Connector Appelez-nous -
16 320479 Shut-off Valve Appelez-nous -
17 307429 Raceway-igniter Wire Appelez-nous -
18 311689 Bracket-igniter Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

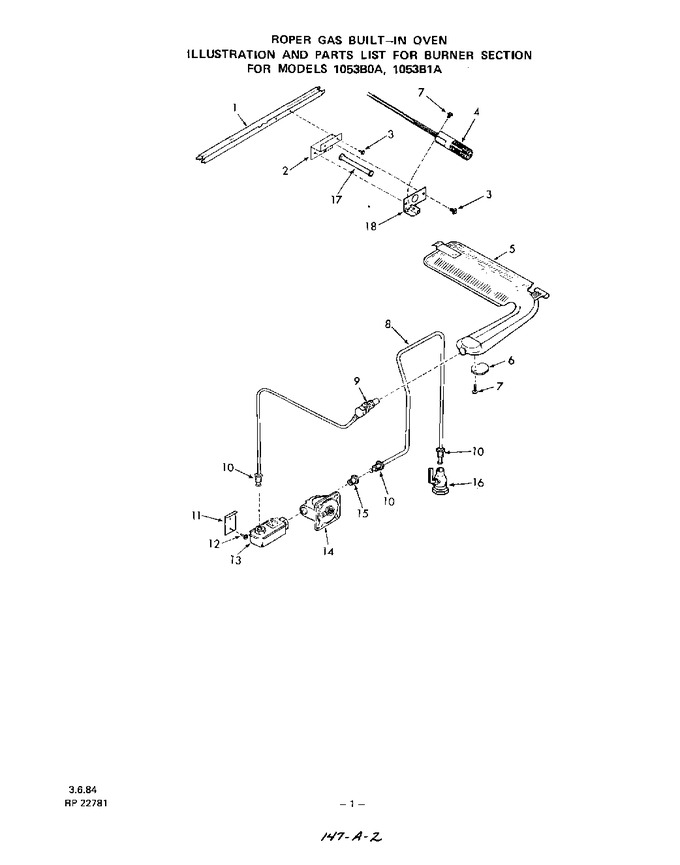

Diagram for 1053B0A
