SELECT A DIAGRAM

02 - Burner


03 - Body

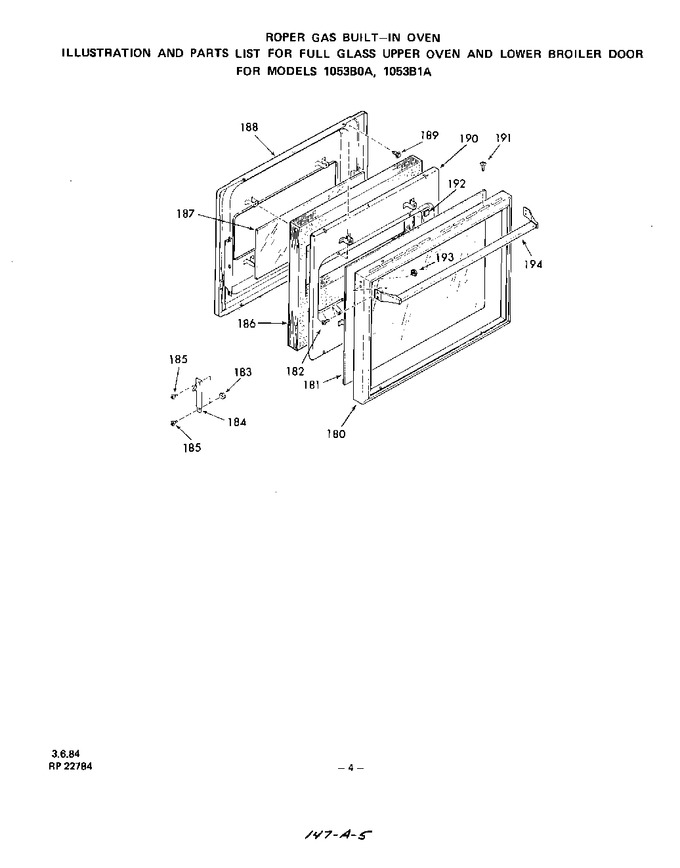

04 - Full Glass Upper Oven And Lower Broiler


05 - Control, Literature


06 - Optional Rotisserie Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
180	325757		Door Frame (upper Oven)		Appelez-nous	-
180	327224		Door Frame (lower Broiler)		Appelez-nous	-
181	322093		Door Glass-outer (upper Oven)		Appelez-nous	-
181	322094		Door Glass-outer (lower Broiler)		Appelez-nous	-
182	319447		Screw 8-32 X 1/2``		Appelez-nous	-
183	97816		Hex Nut 10-32		Appelez-nous	-
184	323460		Hinge Arm Guide (right)		Appelez-nous	-
184	323459		Hinge Arm Guide (left)		Appelez-nous	-
185	97709		Shoulder Bolt (4 Required)		Appelez-nous	-
186	299783		Insulation (lower Broiler Door)		Appelez-nous	-
186	299782		Insulation (upper Oven Door)		Appelez-nous	-
187	111887		Door Glass-inner				$ 12.84
188	299565		Door Lining (lower Broiler)		Appelez-nous	-
188	299528		Door Lining (upper Oven)		Appelez-nous	-
189	104520		Screw 10-32 X 17/32``		Appelez-nous	-
190	322096		Insulation Retainer (upper Oven)		Appelez-nous	-
190	322099		Insulation Retainer (lower Broiler)		Appelez-nous	-
191	295268		Screw 6-32x3/8``		Appelez-nous	-
192	299314		Spacer (4 Req.)		Appelez-nous	-
193	239764		Keps Nut 8-32		Appelez-nous	-
194	318940		Door Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
