New Model Search:

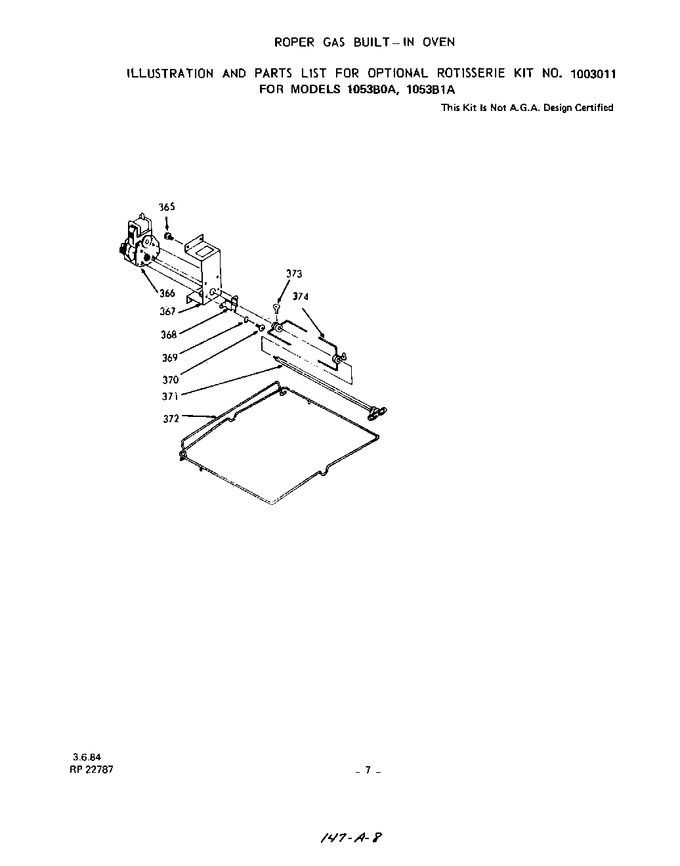

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 365 | 102430 | Screw 10 - 32 X 1/2`` |
|
- | |||||
| 366 | 106575 | Rotisserie Motor |
|
- | |||||
| 367 | 324197 | Rotisserie Mounting Box |
|
- | |||||
| 368 | 281539 | Insulation Retainer |
|
- | |||||
| 369 | 1164 | Lockwasher 3/16`` |
|
- | |||||
| 370 | 70602 | Screw 8-32x1/2`` |
|
- | |||||
| 371 | 100092 | Rotisserie Spit |
|
- | |||||
| 372 | 104827 | Spit Support |
|
- | |||||
| 373 | 70287 | Thumbscrew |
|
- | |||||
| 374 | 88433 | Skewer (2 Required) |
|
- |
