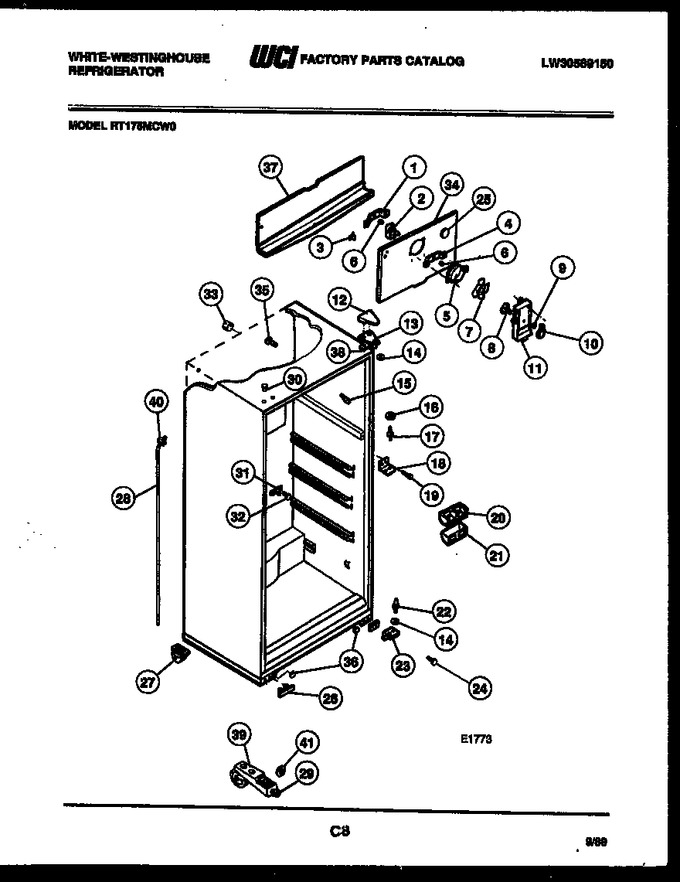

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G185303 | Bracket-rear |
|
- | |||||
| 2 | G158289 | Motor-fan |
|
- | |||||
| 3 | G164571 | Connector Bracket |
|
- | |||||
| 4 | G185302 | Bracket-front |
|
- | |||||
| 5 | G167217 | Orifice Ring |
|
- | |||||
| 6 | G157666 | Bushing (2) |
|
- | |||||
| 7 | G174705 | Fan Blade |
|
- | |||||
| 8 | 3206110 | Damper |
|
$ 53.08 | |||||
| 9 | G162662 | Push Nut-damper |
|
- | |||||
| 10 | 3206109 | Knob-damper Control |
|
- | |||||
| 11 | 3206108 | Cover-fan |
|
- | |||||
| 12 | 3206103 | Hinge Cover-wheat |
|
- | |||||
| 13 | 3206100 | Hinge, Top |
|
- | |||||
| 14 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 15 | 3202338 | Corner Trim-wheat |
|
- | |||||
| 16 | 08000186 | Washer-hinge |
|
- | |||||
| 17 | G142220 | Pin |
|
- | |||||
| 18 | G163207 | Bracket-center Hinge |
|
- | |||||
| 19 | 3206134 | Screw-mounting (2) |
|
- | |||||
| 20 | 3204206 | Air Deflector |
|
- | |||||
| 21 | G162178 | Cover, Deflector |
|
- | |||||
| 22 | G166505 | Pin-bottom Hinge |
|
- | |||||
| 23 | 3206136 | Bracket-bottom Hinge |
|
- | |||||
| 24 | 3206143 | Screw-mounting (4) |
|
- | |||||
| 25 | 3203044 | Plug-short Test Hole |
|
- | |||||
| 26 | 3206135 | Cover-hinge Screw |
|
- | |||||
| 27 | 3206237 | Roller-rear (2) |
|
- | |||||
| 28 | 3206115 | Drain-tube |
|
- | |||||
| 29 | G177024 | Bolt-roller Adj (2) |
|
- | |||||
| 30 | G174747-09 | Plug-button, Wheat |
|
- | |||||
| 31 | 08000056 | Spout-drain Tube |
|
- | |||||
| 32 | 3001361 | Push Pin-drain Spout |
|
- | |||||
| 33 | G85642 | Tube, Rubber |
|
- | |||||
| 34 | 3206119 | Cover-evaporator Coil |
|
- | |||||
| 35 | G163669 | Support, Cover (2) |
|
- | |||||
| 36 | 3206142 | Plug (2) |
|
- | |||||
| 37 | 3206146 | Drain Trough |
|
- | |||||
| 38 | G183861 | Shim Top Hinge |
|
- | |||||
| 39 | G188673 | Roller Assy-front (2) |
|
- | |||||
| 40 | G176853 | Ring, Seal |
|
- | |||||
| 41 | G182799 | Washer Nylon (2) |
|
- | |||||
| 11A | G187363 | Screw |
|
- | |||||
| 13A | 3001479 | Screw-mounting (2) (non-illustrated) |
|
- | |||||
| 28A | G187009 | Screw-mtg (non-illustrated) |
|
- | |||||
| 34A | G167542 | Nut-u Type (2) (non-illustrated) |
|
- | |||||
| 39A | G177021 | Roller (2) (non-illustrated) |
|
- | |||||
| 39B | G178494 | Spring-roller Adj (2) (non-illustrated) |
|
- | |||||
| 39C | 08000096 | Screw-roller Assy Mtg (6) (non-illustrated) |
|
- | |||||
| 3A | 3001001 | Screw-mounting (non-illustrated) |
|
- | |||||
| 5A | 3001001 | Screw-fan Assy (2) (non-illustrated) |
|
- |
