02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


06 - Ice Maker Parts


07 - Ice Maker Installation Parts

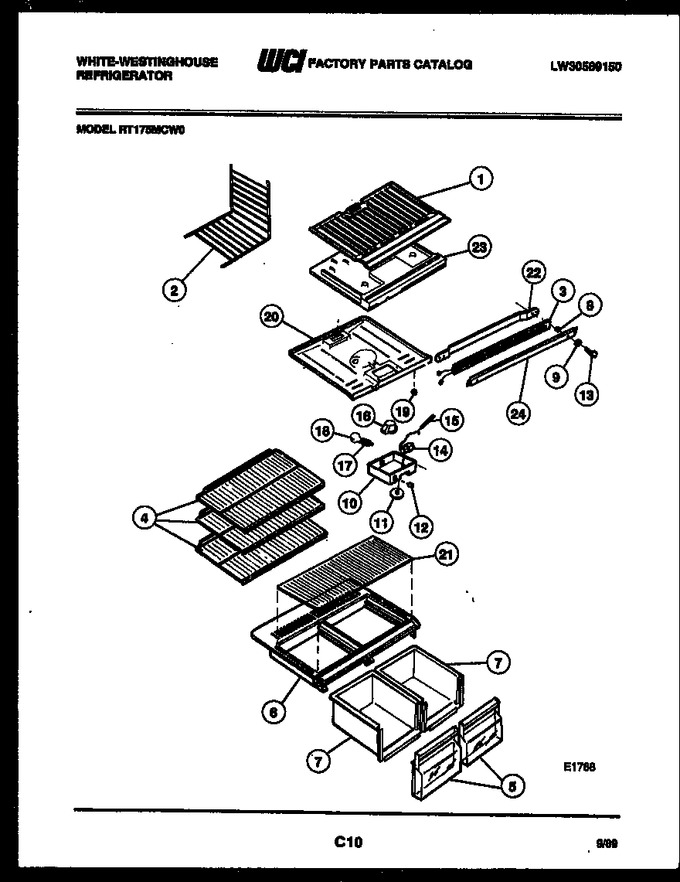

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206187		Bottom-freezer		Appelez-nous	-
2	3001570		Shelf-freezer		Appelez-nous	-
3	3206120		Heater-mullion		Appelez-nous	-
4	3206179		Shelf-refrigerator (3)		Appelez-nous	-
5	3206181		Front-crisper Pan (2)		Appelez-nous	-
6	3206183		Cover-crisper		Appelez-nous	-
7	3206180		Pan-crisper, (2)				$ 155.70
8	3200464		Spacer-mullion (2)		Appelez-nous	-
9	G166847		Washer-no. 10 Steel (2)		Appelez-nous	-
10	3206130		Control Box		Appelez-nous	-
11	3201777		Knob-temperature Control		Appelez-nous	-
12	3206129		Switch-energy Saver		Appelez-nous	-
13	3206134		Screw-mullion (4)		Appelez-nous	-
14	3018894		Control-temperature		Appelez-nous	-
15	3018891		Hsg-cont Cap Tube		Appelez-nous	-
16	G187484		Timer-defrost		Appelez-nous	-
17	08000815		Light Socket		Appelez-nous	-
18	3001179		Light Bulb		Appelez-nous	-
19	09918806		Light Switch		Appelez-nous	-
20	3206185		Top-refrigerator		Appelez-nous	-
21	3206182		Insert-crisper Cover		Appelez-nous	-
22	G166709		Strap-mullion Mtg		Appelez-nous	-
23	3206186		Divider, Styrofoam		Appelez-nous	-
24	3206123		Mullion-wheat		Appelez-nous	-
10A	G187363		Screw		Appelez-nous	-
14A	G107080		Screw		Appelez-nous	-
16A	G105289		Screw		Appelez-nous	-
20A	G162673		Screw-top Mtg (3) (non-illustrated)		Appelez-nous	-
23A	3018900		Wiring Harness - Divider (non-illustrated)		Appelez-nous	-
23B	3205266		Edge Protector (non-illustrated)				$ 80.09
2A	3001289		Support-shelf (2) (non-illustrated)		Appelez-nous	-
2B	3001290		Screw-support (2) (non-illustrated)		Appelez-nous	-
2C	3001562		Hanger-shelf (non-illustrated)		Appelez-nous	-
2D	08010253		Screw-hanger (non-illustrated)		Appelez-nous	-
2E	G186773		Clip-shelf (2) (non-illustrated)		Appelez-nous	-
