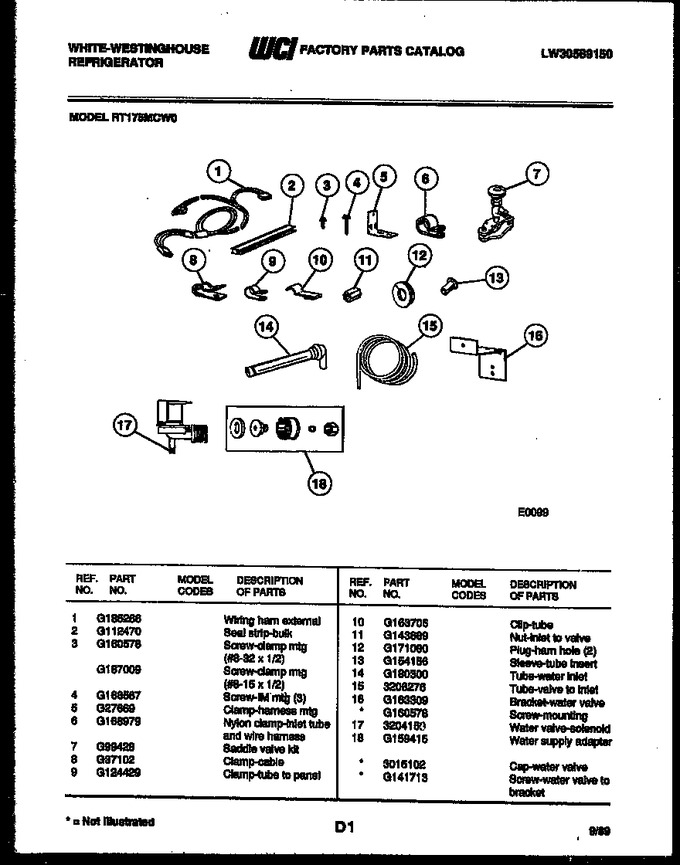

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G185266		Wiring Harn External		Appelez-nous	-
2	G112470		Seal Strip-bulk		Appelez-nous	-
3	G187009		Screw-clamp Mtg (8-15 X 1/2)		Appelez-nous	-
3	G160578		Screw		Appelez-nous	-
4	G166567		Screw-im Mtg (3)		Appelez-nous	-
5	G27669		Clamp-harness Mtg		Appelez-nous	-
6	G168979		Nylon Clamp-inlet Tube And Wire Harness		Appelez-nous	-
7	G99428		Saddle Valve Kit		Appelez-nous	-
8	G37102		Clamp, Cable		Appelez-nous	-
9	G124429		Clamp		Appelez-nous	-
10	G163706		Clip-tube		Appelez-nous	-
11	G143689		Nut-inlet To Valve		Appelez-nous	-
12	G171080		Plug-harn Hole (2)		Appelez-nous	-
13	G154156		Sleeve, Tube Insert		Appelez-nous	-
14	G180300		Tube, Water Inlet		Appelez-nous	-
15	3206276		Tube-valve To Inlet		Appelez-nous	-
16	G163309		Bracket-water Valve		Appelez-nous	-
17	3204159		Water Valve-solenoid		Appelez-nous	-
18	G159415		Water Supply Adapter		Appelez-nous	-
*21588	3015102		Cap-water Valve		Appelez-nous	-
*21589	G141713		Screw-water Valve To Bracket		Appelez-nous	-
16A	G160578		Screw		Appelez-nous	-
