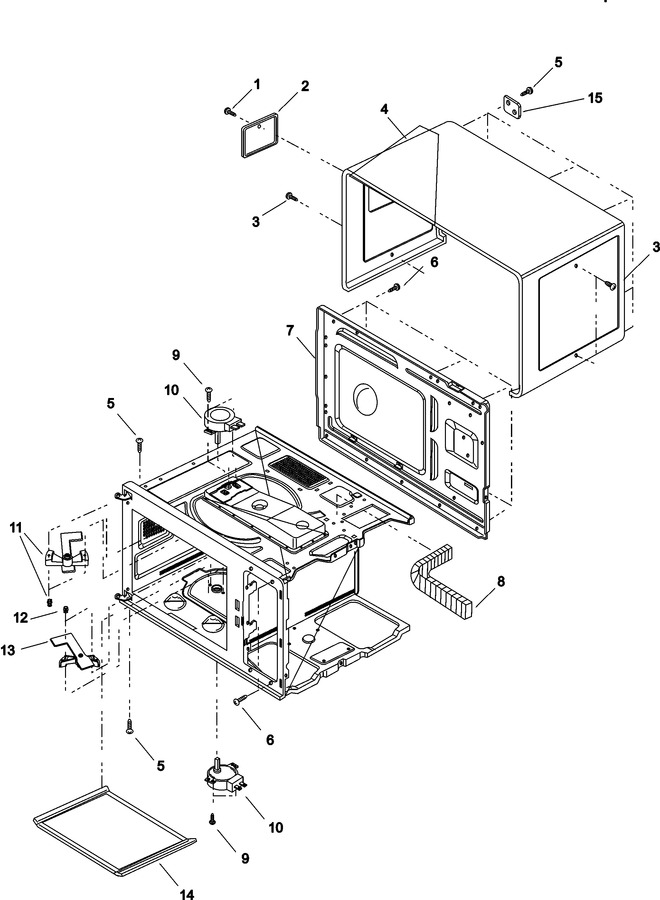

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	53001609		Screw Tapping, Counter Sunk Hd		Appelez-nous	-
002	53001579		Cover, Lamp- Stainless		Appelez-nous	-
003	R0654036		Screw, Truss Hd S/tap		Appelez-nous	-
004	53001577		Outer Case- Stainless		Appelez-nous	-
005	R0654183		Screw, Truss Hd		Appelez-nous	-
006	R0131246		Screw, Tapping Truss Head		Appelez-nous	-
007	53001585		Back Plate		Appelez-nous	-
008	53001610		Gasket		Appelez-nous	-
009	R0654180		Screw, Pan Hd		Appelez-nous	-
010	59001625		Motor, Antenna 220-240v		Appelez-nous	-
011	12002592		Kit- Antenna Top				$ 145.29
012	53001554		Rivet Assembly		Appelez-nous	-
013	12002593		Kit- Antenna Bottom		Appelez-nous	-
014	53001555		Tray, Ceramic		Appelez-nous	-
015	53001619		Bracket, Stacking		Appelez-nous	-
016	53001724		Bracket, Capacitor, Back		Appelez-nous	-
017	53001725		Cable Assy, Circuit Protector		Appelez-nous	-
