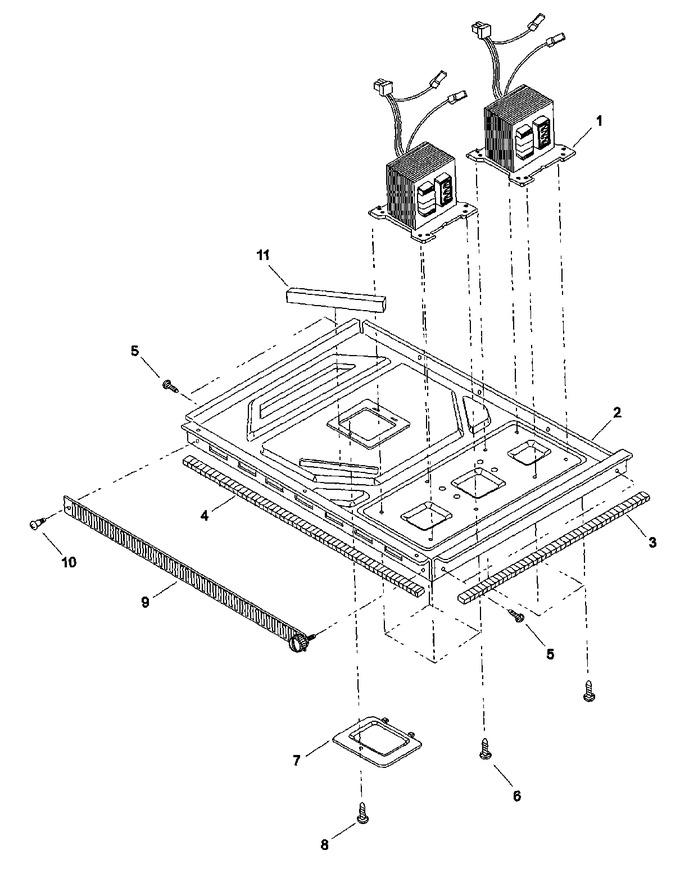

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	53001589		Transformer-hv		Appelez-nous	-
002	53001647		Base Plate		Appelez-nous	-
003	53001626		Gasket, Base- Side		Appelez-nous	-
004	53001627		Gasket, Base- Front		Appelez-nous	-
005	R0654036		Screw, Truss Hd S/tap		Appelez-nous	-
006	4344826		Screw, Bining Hd S/tap   (Replaces: R0654028)				$ 14.31
007	53001628		Cover, Base		Appelez-nous	-
008	R0131246		Screw, Tapping Truss Head		Appelez-nous	-
009	53001571		Filter, Air- W/thumb Screw		Appelez-nous	-
010	53001629		Screw, Drawing		Appelez-nous	-
011	53001734		Cushion		Appelez-nous	-
