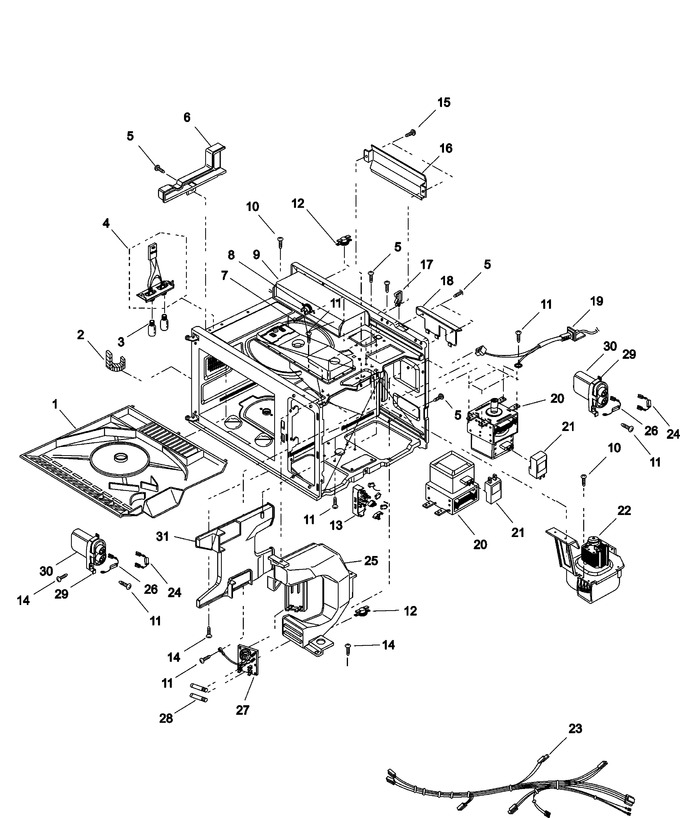

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	53001588		Duct, Grease Shield		Appelez-nous	-
002	53001610		Gasket		Appelez-nous	-
003	53001590		Lamp		Appelez-nous	-
004	53001591		Lamp Socket / Bracket Assy		Appelez-nous	-
005	R0131246		Screw, Tapping Truss Head		Appelez-nous	-
006	53001592		Duct, Exhaust- Left		Appelez-nous	-
007	R0654030		Screw, Pan Hd S/tap		Appelez-nous	-
008	R9900321		Thermostat, Bimetal		Appelez-nous	-
009	53001559		Duct, Outlet-top		Appelez-nous	-
010	R0654180		Screw, Pan Hd		Appelez-nous	-
011	4344826		Screw, Bining Hd S/tap   (Replaces: R0654028)				$ 14.31
012	53001560		Thermal Cut Out- Magnetron				$ 16.60
013	53001600		Interlock Switch Assy		Appelez-nous	-
014	R0654183		Screw, Truss Hd		Appelez-nous	-
015	4344826		Screw, Bining Hd S/tap   (Replaces: R0654028)				$ 14.31
016	53001620		Air Deflector				$ 10.58
017	R9800440		Holder- Wiring		Appelez-nous	-
018	53001621		Cover, Power Cord		Appelez-nous	-
019	53001593		Power Cord Assembly		Appelez-nous	-
020	53001594		Magnetron		Appelez-nous	-
021	53001565		Filter Assembly				$ 27.81
022	53001595		Blower Motor Assembly		Appelez-nous	-
023	53001726		Harness, Main		Appelez-nous	-
024	53001725		Cable Assy, Circuit Protector		Appelez-nous	-
025	53001727		Duct, Mag.		Appelez-nous	-
026	WPR9800486		Diode- Black Sleeve   (Replaces: R9800486)				$ 26.79
027	53001596		Fuse Block / Filter Assy		Appelez-nous	-
028	14QBP12CSB		Fuse, 12 Amp   (Replaces: M0805105)				$ 1.65
029	53001728		Bracket, Capacitor, Front		Appelez-nous	-
030	53001903		Capacitor .91 Mfd. 2100v		Appelez-nous	-
031	53001729		Duct, Exhaust- Right		Appelez-nous	-
