SELECT A DIAGRAM

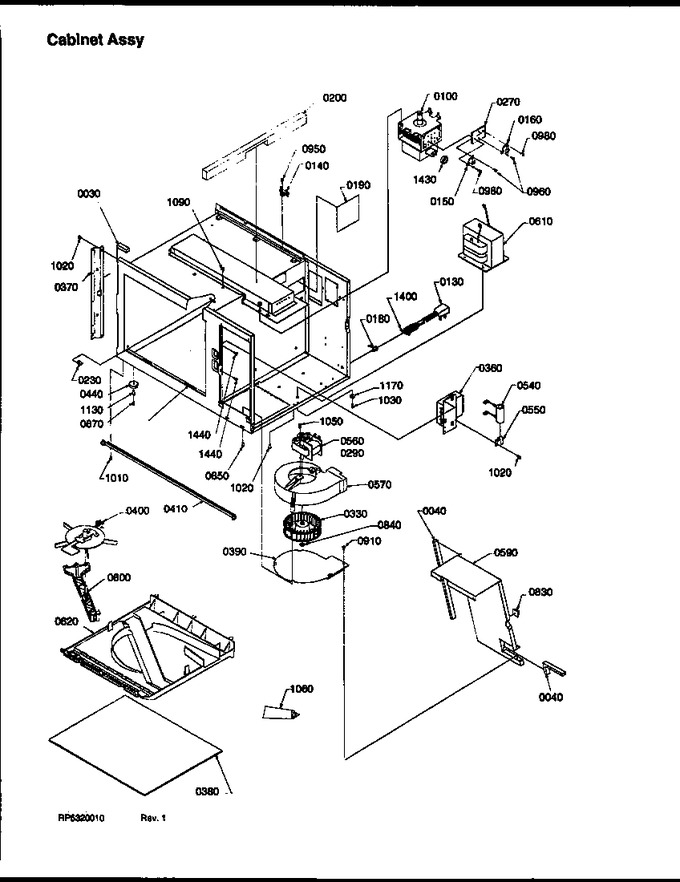

01 - Cabinet Assy


02 - Door Assy


03 - Outer Cabinet/door/ctrl Panel/timer Assy


04 - Transformer/light Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
30	A3030301		Gasket (inch)		Appelez-nous	-
40	A3030302		Gasket		Appelez-nous	-
100	10489401		Magnetron		Appelez-nous	-
130	B5669013		Cord-power		Appelez-nous	-
140	B5795305		Fuse, Thermal		Appelez-nous	-
150	18QBP110H		Thermal Cutout   (Replaces: B5684112)		Appelez-nous	-
160	B5684113		Protector, Thermal		Appelez-nous	-
180	M0370009		Relief- Strain		Appelez-nous	-
190	B8367701		Window, Oven Light		Appelez-nous	-
200	B8369901		Gasket, Oven Top		Appelez-nous	-
230	B8374901		Support, Shelf		Appelez-nous	-
270	B8380601		Plate, Thermal Cutout		Appelez-nous	-
290	M0321209		Tie-elect.		Appelez-nous	-
330	C8793501		Blower Wheel		Appelez-nous	-
360	10985003		Interlock Switch		Appelez-nous	-
370	C8935901		Brkt,hinge Support		Appelez-nous	-
380	C8936903		Tray-glass Floor		Appelez-nous	-
390	C8942501		Brkt Scroll		Appelez-nous	-
400	C8943002		Assy, Antenna		Appelez-nous	-
410	C8943601		Trim		Appelez-nous	-
440	C8960601		Foot, Outer Case		Appelez-nous	-
540	C8981602		Resistor Assy		Appelez-nous	-
550	C8985901		Bracket		Appelez-nous	-
560	D7670302		Motor, Blower		Appelez-nous	-
570	D7684601		Scroll, Blower		Appelez-nous	-
590	D7685409		Blower Partition,black E Ct		Appelez-nous	-
600	D7685502		Cradle, Antenna		Appelez-nous	-
610	D7686912		Transformer-xfmr		Appelez-nous	-
620	D7692501		Grease Shield		Appelez-nous	-
830	M0104102		Clip, Cord				$ 8.10
840	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
850	M0230017		Screw,tc		Appelez-nous	-
870	M0213147		Screw		Appelez-nous	-
910	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
950	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
960	M0229916		Screw T.c		Appelez-nous	-
980	M0232012		Screw		Appelez-nous	-
1010	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
1020	M0231717		Screw, Tf		Appelez-nous	-
1030	M0251030		Screw		Appelez-nous	-
1050	M0213123		Screw		Appelez-nous	-
1090	M0288808		Nut		Appelez-nous	-
1130	M0571201		Eyelet		Appelez-nous	-
1400	M0325501		Insulator, Pod K		Appelez-nous	-
1440	M0216517		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
