01 - Cabinet Assy
02 - Door Assy
03 - Outer Cabinet/door/ctrl Panel/timer Assy

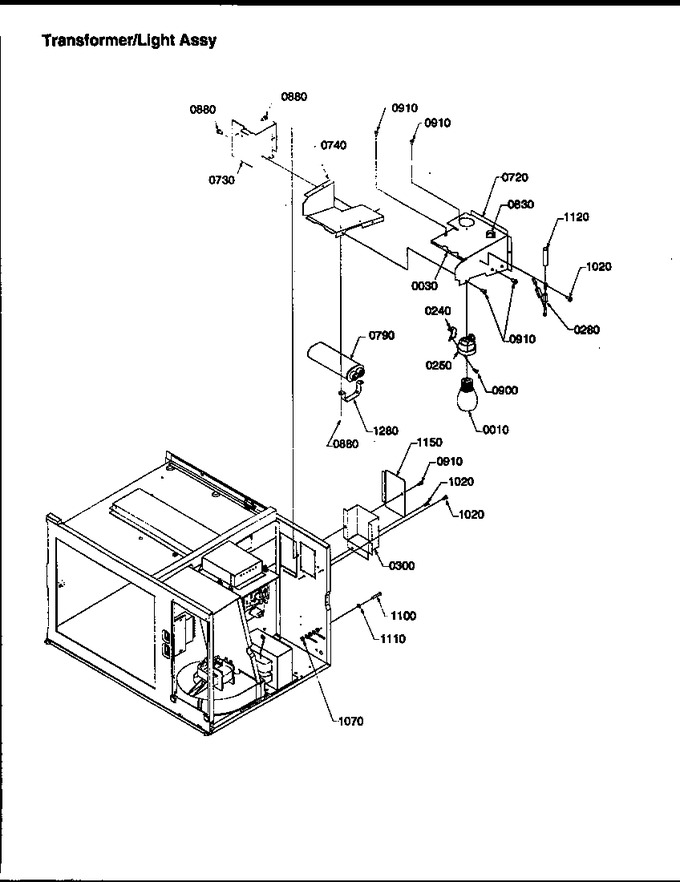

04 - Transformer/light Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | WP67002552 | Bulb, Light(240) (Replaces: A0282802) |
|
Immediately | $ 10.58 | ||||
| 30 | A3030301 | Gasket (inch) |
|
- | |||||
| 240 | B8376701 | Bracket, Light |
|
- | |||||
| 250 | B8376801 | Socket, Light |
|
- | |||||
| 280 | 10649001 | Rectifier |
|
- | |||||
| 720 | D7772005 | Duct, Top Air |
|
- | |||||
| 730 | D7772101 | Shield, Light |
|
- | |||||
| 740 | D7772202 | Air Duct. Bottom |
|
- | |||||
| 790 | WP59001168 | Capacitor (Replaces: 10366904) |
|
Immediately | $ 208.35 | ||||
| 830 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 880 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 900 | WP59002061 | Screwxxx (Replaces: M0216616) |
|
$ 6.98 | |||||
| 910 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 1020 | M0231717 | Screw, Tf |
|
- | |||||
| 1070 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 1100 | M0293502 | Stud-self Clinch |
|
- | |||||
| 1110 | M0272503 | Washer |
|
- | |||||
| 1120 | M0322602 | Sleeve, Wire |
|
- | |||||
| 1150 | B8370702 | Cover, Light |
|
- | |||||
| 1280 | A4055405 | Strap, Capacitor |
|
- | |||||
| NI | M0234403 | Screw |
|
- |
