SELECT A DIAGRAM

01 - Cabinet Assy


02 - Door Assy

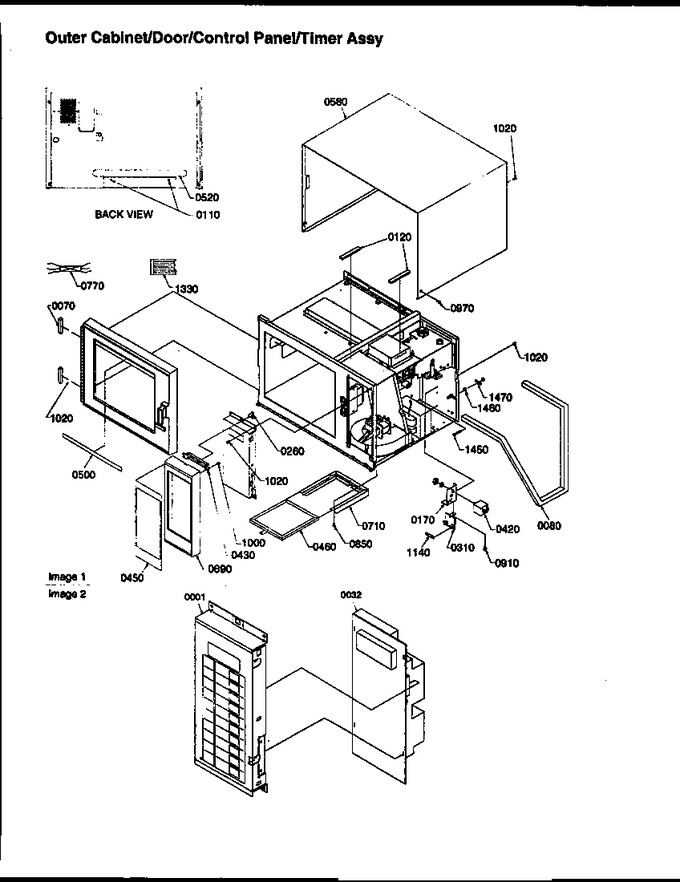

03 - Outer Cabinet/door/ctrl Panel/timer Assy


04 - Transformer/light Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0163224		Assy, Keyboard		Appelez-nous	-
32	10094104		Board, P.c.		Appelez-nous	-
70	A3263904		Gasket		Appelez-nous	-
80	A3263907		Gasket - Each		Appelez-nous	-
110	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
120	A4591129		Gasket K		Appelez-nous	-
170	B5696107		Bracket-line Filter		Appelez-nous	-
260	B8379401		Clip		Appelez-nous	-
310	B8391701		Board, Fuse		Appelez-nous	-
420	B5717801		Line Filter Xx		Appelez-nous	-
430	C8960301		Bracket		Appelez-nous	-
450	C8960701		Insert Esc Brushed Chrome		Appelez-nous	-
460	10169101		Filter, Preform		Appelez-nous	-
500	C8962426		Thinplate Dr Cfc 113		Appelez-nous	-
520	C8962102		Cord Ret-deburred		Appelez-nous	-
580	D7684903		Wrapper		Appelez-nous	-
690	D7730101		Escutcheon Control		Appelez-nous	-
710	D7740902		Bracket		Appelez-nous	-
770	10488901		Harness, Oven		Appelez-nous	-
850	M0230017		Screw,tc		Appelez-nous	-
910	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
970	M0231804		Screw, Tf		Appelez-nous	-
1020	M0231717		Screw, Tf		Appelez-nous	-
1140	M0805106		Fuse, 10 Amp				$ 3.70
1330	10291301		Harness, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
