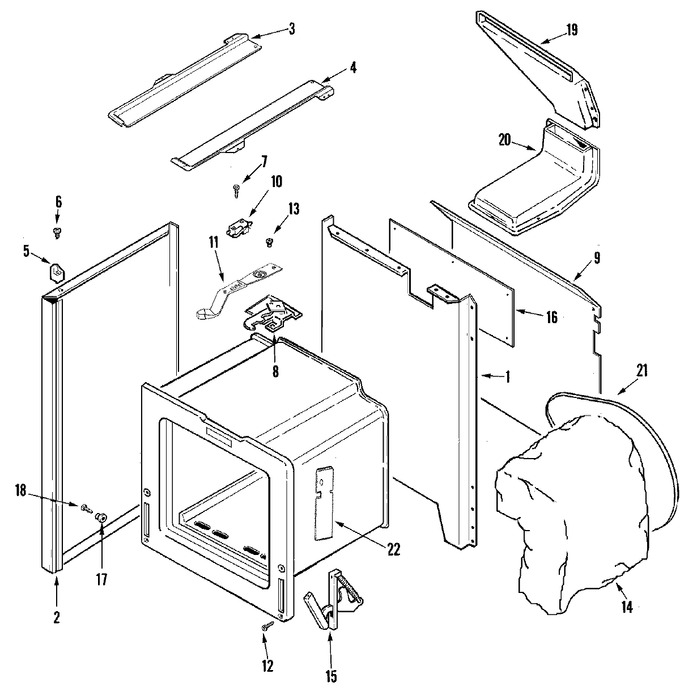

01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer (stl)
04 - Gas Controls
05 - Oven/base
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009884 | Back, Main (gas) | A |
|
- | ||||
| 1 | WP7101P434-60 | Screw (Replaces: 71001394) | A |
|
$ 6.26 | ||||
| 1 | W11577436 | Grommet (Replaces: 8008P010-60) | A |
|
- | ||||
| 1 | 8019P013-60 | Clip, Wire Lock (Replaces: 74006811) | A |
|
$ 13.46 | ||||
| 2 | 8270P090-60 | Tape, Foil (3`` Wide) | A |
|
- | ||||
| 2 | WP7101P434-60 | Screw (Replaces: 71001394) | A |
|
$ 6.26 | ||||
| 2 | 74003283 | Panel, Side (blk) | A |
|
- | ||||
| 3 | 74009768 | Box, Burner (lt) | A |
|
- | ||||
| 4 | 74009767 | Box, Burner (rt) | A |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | A |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | A |
|
- | ||||
| 6 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | A |
|
Immediately | $ 12.62 | |||
| 7 | 7101P330-60 | Screw, Switch | A |
|
- | ||||
| 8 | 74009764 | Latch, Manual Door Lock | A |
|
$ 142.25 | ||||
| 8 | 74003975 | Screw (8abx3/8-blk) | A |
|
$ 12.02 | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | A |
|
Immediately | $ 12.62 | |||
| 9 | 74009654 | Cover, Main Back (wire) | A |
|
- | ||||
| 10 | 74009591 | Switch, Door Latch | A |
|
$ 102.26 | ||||
| 11 | 74010244 | Lever, Lock (blk) | A |
|
$ 5.27 | ||||
| 12 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | A |
|
$ 4.29 | ||||
| 13 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | A |
|
$ 4.29 | ||||
| 14 | 74009201 | Insulation, Oven Wrap | A |
|
$ 83.18 | ||||
| 14 | 74003382 | Insulation, Back/bottom | A |
|
- | ||||
| 15 | 74011142 | Hinge, Door (Replaces: 74005725) | A |
|
Immediately | $ 108.22 | |||
| 16 | 3604F165-51 | Shield, Flue (lower) | A |
|
- | ||||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | A |
|
Immediately | $ 12.62 | |||
| 17 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | A |
|
$ 7.07 | ||||
| 17 | WPW10348409 | Screw, W/shoulder (Replaces: 74007476) | A |
|
Immediately | $ 6.98 | |||
| 18 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | A |
|
Immediately | $ 12.62 | |||
| 18 | WPW10348409 | Screw, W/shoulder (Replaces: 74007476) | A |
|
Immediately | $ 6.98 | |||
| 19 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | A |
|
Immediately | $ 12.62 | |||
| 19 | 4022W007-19 | Extension, Flue Box | A |
|
- | ||||
| 20 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | A |
|
$ 6.47 | ||||
| 20 | 74006420 | Box, Vent | A |
|
- | ||||
| 21 | 74003385 | Strap, Insulation | A |
|
- | ||||
| 22 | 74009569 | Shield, Heat | A |
|
- |
